Victaulic® FireLock™ L050744GE0 744 Flange Adapter, 5 in, Flange, 125/150 lb, Ductile Iron

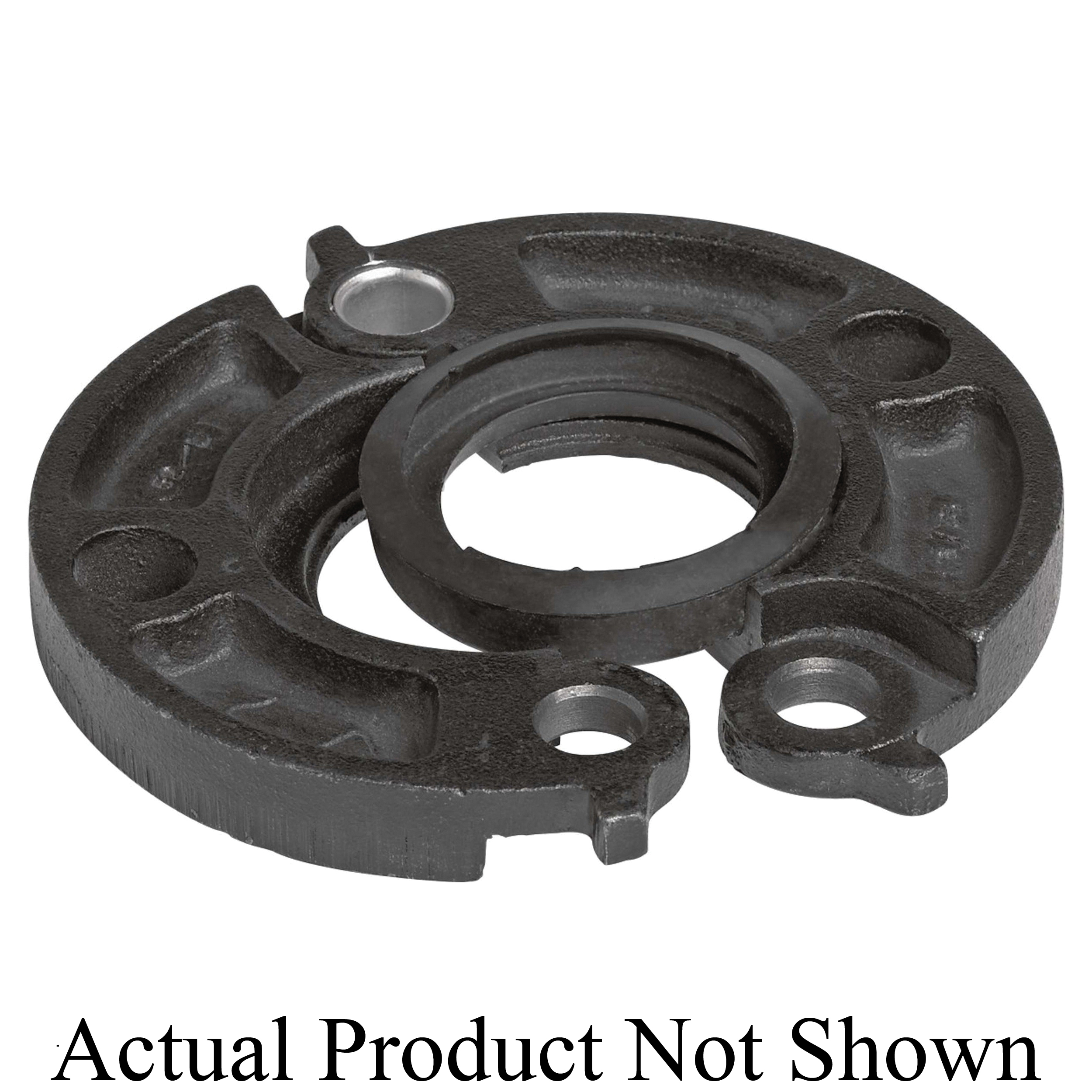

Style 744 FireLock™ Flange adapter is designed for directly incorporating flanged components with ANSI Class 125 or 150 bolt hole patterns into a grooved pipe system. Sizes 2 to 8 in (50 to 200 mm) are hinged for easy handling with integral end tabs which facilitate assembly. The design incorporates small teeth inside the key shoulder I.D. to prevent rotation. Because of the outside flange dimension, FireLock™ Flange adapters should not be used on FireLock™ fittings. When wafer or lug-type valves are used adjoining a Victaulic fitting, check disc dimensions to assure proper clearance. FireLock™ Flange adapters should not be used as anchor points for tie-rods across nonrestrained joints. Mating rubber faced flanges, valves, etc., require the use of a FireLock™ Flange washer. FireLock™ Flange adapters with Vic-Plus gaskets do not require lubrication. The gasket must always be assembled with the color coded lip on the pipe and the other lip facing the mating flange.

Victaulic® FireLock™ Flange Adapter, Series: 744, Fitting/Connector Type: Adapter, 5 in Nominal, Flange, 1 in Thickness, 125/150 lb, 175 psi, Ductile Iron, Hot Dipped Galvanized, 11 in H

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L050744GE0_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L050744GE0_Specification_Sheet.pdf
