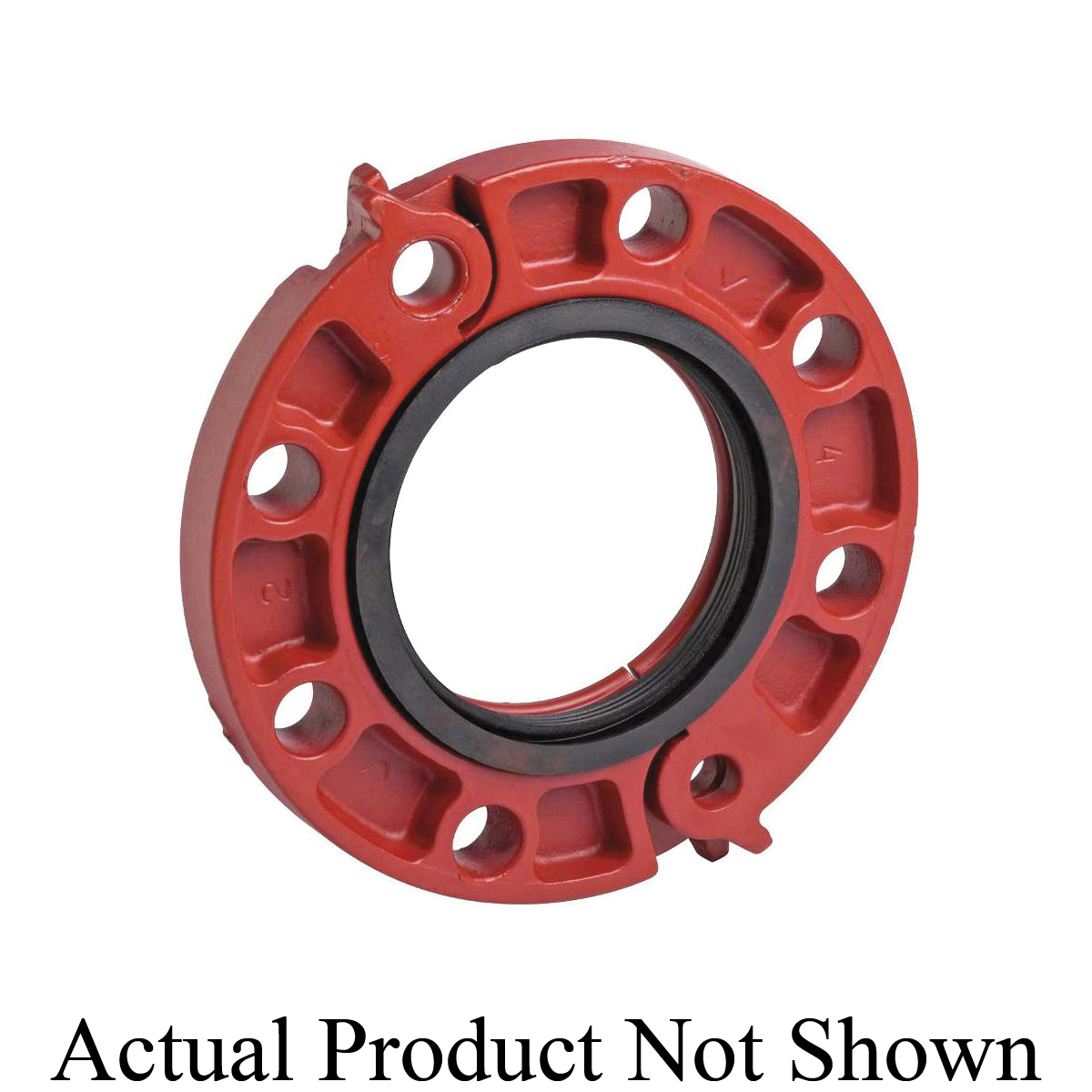

Victaulic® H160341PBA 341 Adapter, 16 in, Grooved, Ductile Iron

Victaulic® H160341PBA 341 Adapter, 16 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: H160341PBA_
  • MPN: H160341PBA
  • UPC: 688304418877
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Pipe of AWWA dimensions can be joined quickly and easily with the Victaulic® grooved piping method. Victaulic® products and recommendations conform to ANSI/AWWA C-606, Standard for Grooved and Shouldered Type Joints and CSA 242 M1980. The groove configuration for ductile (cast) pipe includes a large radius, eliminating sharp corners and stress concentration. This provides stronger beam load capability and higher working pressures for radius grooved systems than available with conventional flanged systems.

Victaulic® Adapter, Series: 341, Fitting/Connector Type: Adapter, 16 in Nominal, Grooved, 1.88 in Thickness, 150 psi, Cast, Ductile Iron, Alkyd Phenolic Primer, 17.4 in OD x 27.25 in H

Dimensions      :      17.4 in OD x 27.25 in H
End Style      :      Grooved
Finish      :      Alkyd Phenolic Primer
Fitting/Connector Type      :      Adapter
Material      :      Ductile Iron
Method of Manufacture      :      Cast
Nominal Size      :      16 in
Pressure Rating      :      150 psi
Series      :      341
Thickness      :      1.88 in
  • Designed for direct connection of flanged components into a grooved cast or ductile system
  • Without gasket
