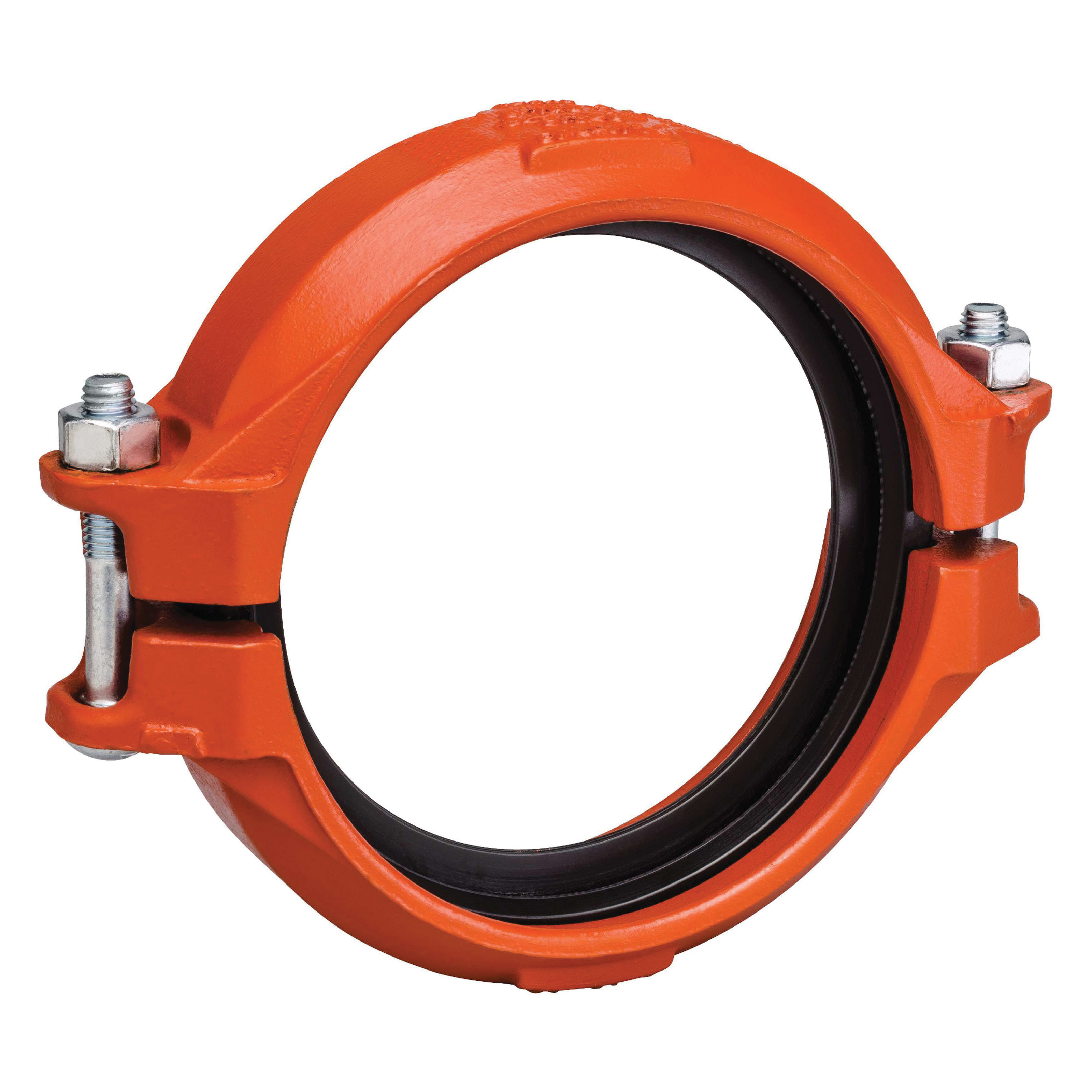

Victaulic® Installation-Ready™ L020356PE0 356 Transition Coupling, 2 in, Grooved

Victaulic® Installation-Ready™ L020356PE0 356 Transition Coupling, 2 in, Grooved

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L020356PE0_
  • MPN: L020356PE0
  • UPC: 883481826365
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Installation-Ready™ Transition Coupling, Series: 356, Fitting/Connector Type: Coupling, 2 in Nominal, Grooved, 2.2 in Thickness, 5-1/2 in Length, Ductile Iron, Orange Painted, Orange, -30 to 250 deg F, 1.9 in OD x 3.5 in H

Color      :      Orange
Dimensions      :      1.9 in OD x 3.5 in H
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Coupling
Length      :      5-1/2 in
Material      :      Ductile Iron
Nominal Size      :      2 in
Series      :      356
Temperature Rating      :      -30 to 250 deg F
Thickness      :      2.2 in
  • Designed for use on chlorinated polyvinyl chloride/polyvinyl chloride (CPVC/PVC) pipe featuring the Victaulic® PGS-300 groove profile
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020356PE0_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020356PE0_Specification_Sheet.pdf
