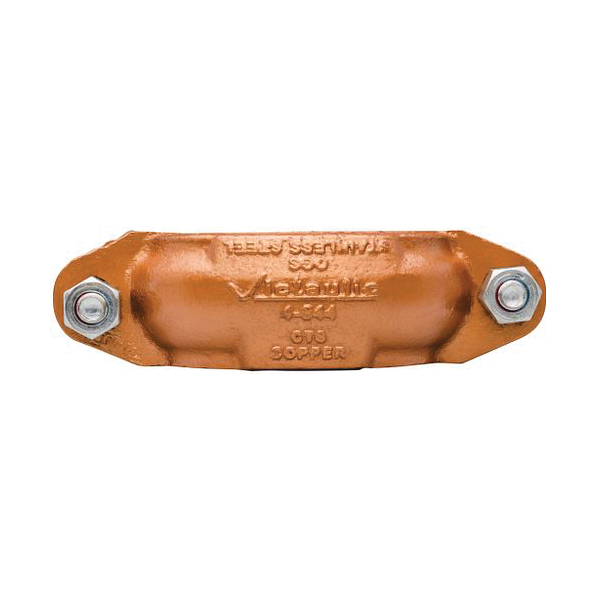

Victaulic® Installation-Ready™ L024644PP0 644 Transition Coupling, 2-1/2 in, OGS Grooved x CTS Grooved, Ductile Iron, Copper
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: L024644PP0_
- MPN: L024644PP0
- UPC: 883481942645
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Victaulic® Installation-Ready™ Transition Coupling, Series: 644, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, OGS Grooved x CTS Grooved End Style, 6-3/4 in Length, Up to 300 psi Pressure, Ductile Iron, Copper, 0 to 180 deg F, 2.13 in W, Domestic
| Dimensions | : | 2.13 in W |
| Domestic/Import | : | Domestic |
| End Style | : | OGS Grooved x CTS Grooved |
| Finish | : | Copper |
| Fitting/Connector Type | : | Coupling |
| Length | : | 6-3/4 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 2-1/2 in |
| Pressure Rating | : | Up to 300 psi |
| Series | : | 644 |
| Temperature Rating | : | 0 to 180 deg F |
- Provides a single coupling connection for grooved end stainless steel pipe to grooved end copper tubing of the same nominal size
- Designed for use only on types 304 and 316 SCH 10S and 40S stainless steel pipe and ASTM B88 types K, L and M and ASTM B306 type DWV copper tubing
