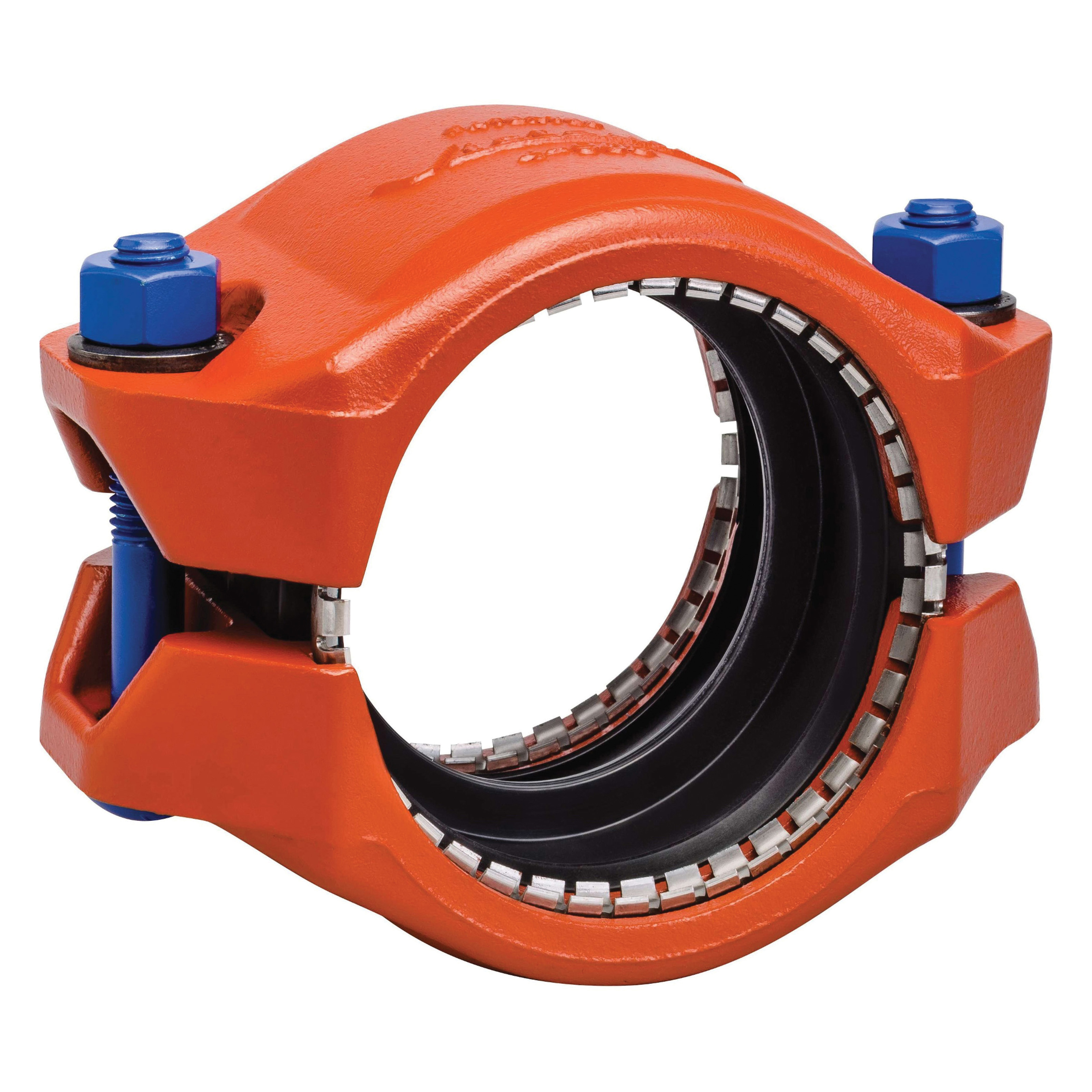

Victaulic® L020905PT1 905 Coupling, 2 in, Ductile Iron

Victaulic® L020905PT1 905 Coupling, 2 in, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L020905PT1_
  • MPN: L020905PT1
  • UPC: 883481787819
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Coupling, Series: 905, Fitting/Connector Type: Coupling, 2 in Nominal, 4.13 in Thickness, 6.63 in Length, 333 psi, Ductile Iron, Orange Painted, Orange, -20 to 180 deg F, 2.375 in OD

Color      :      Orange
Dimensions      :      2.375 in OD
Finish      :      Orange Painted
Fitting/Connector Type      :      Coupling
Length      :      6.63 in
Material      :      Ductile Iron
Nominal Size      :      2 in
Pressure Rating      :      333 psi
Series      :      905
Temperature Rating      :      -20 to 180 deg F
Thickness      :      4.13 in
  • Designed for plain end HDPE pipe (SDR 7 -SDR 26)
  • Pressure rating meets or exceeds the performance capabilities of the pipe
  • Grade "T" nitrile gasket
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L063905BE0_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_K020905F00_Specification_Sheet.pdf
