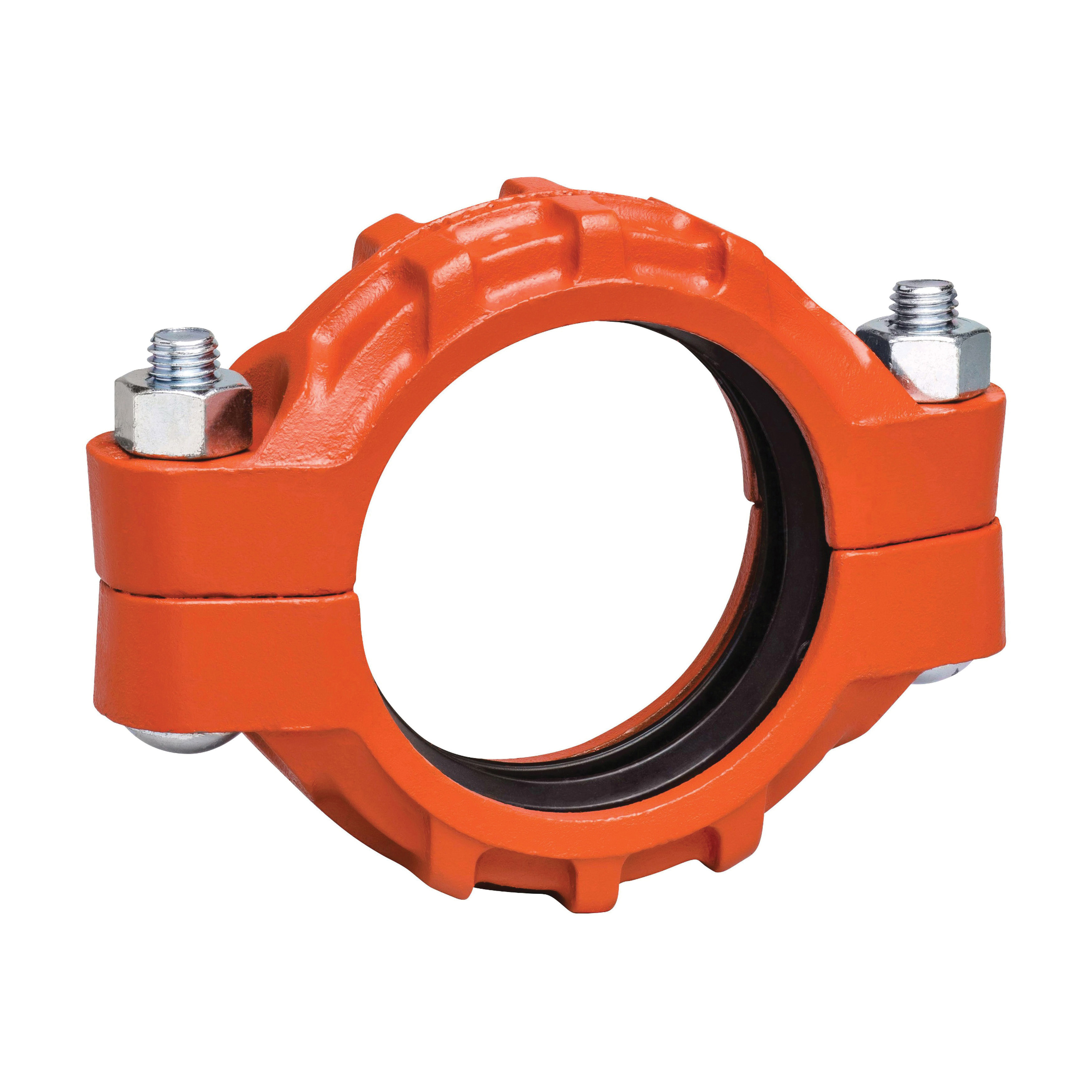

Victaulic® L024077THD 77 Series Flexible Coupling, 2-1/2 in, Grooved, Ductile Iron, Enamel Painted

Victaulic® L024077THD 77 Series Flexible Coupling, 2-1/2 in, Grooved, Ductile Iron, Enamel Painted

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L024077THD_
  • MPN: L024077THD
  • UPC: 688304767869
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Flexible Coupling, Series: 77 Series, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Grooved, 1.88 in Thickness, 6-1/2 in Length, 1000 psi, Ductile Iron, Enamel Painted, Orange, -20 to 180 deg F, 2-7/8 in OD

Color      :      Orange
Dimensions      :      2-7/8 in OD
End Style      :      Grooved
Finish      :      Enamel Painted
Fitting/Connector Type      :      Coupling
Length      :      6-1/2 in
Material      :      Ductile Iron
Nominal Size      :      2-1/2 in
Pressure Rating      :      1000 psi
Series      :      77 Series
Temperature Rating      :      -20 to 180 deg F
Thickness      :      1.88 in
  • Cross-ribbed, 2-piece housing construction
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_FA89443X14_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L100077AO0_Specification_Sheet.pdf
