Victaulic® L024171PEX L024171PEX_
  1. pin-int

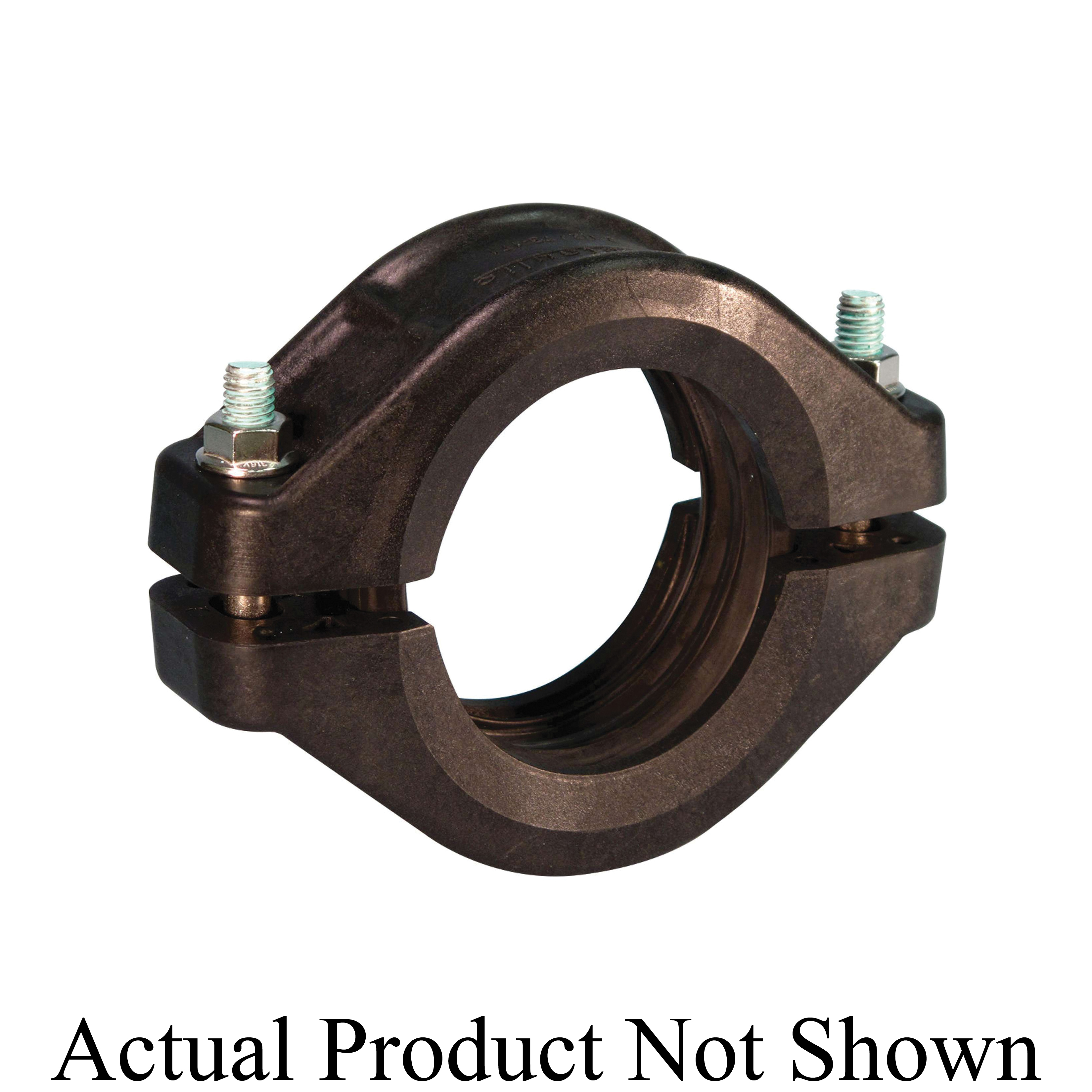

Victaulic® L024171PEX 171 Flexible Coupling, Composite, 2-1/2 in, Painted

Victaulic® L024171PEX 171 Flexible Coupling, Composite, 2-1/2 in, Painted

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L024171PEX_
  • MPN: L024171PEX
  • UPC: 883481253185
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Flexible Coupling, Series: 171, Coupling Fitting/Connector, 2-1/2 in Nominal, Grooved End Style, 1.92 in Thickness, 4.87 in Length, 150 psi Pressure, Injection-Molded Method of Manufacture, Composite, Painted, 33 to 130 deg F, 2-7/8 in OD Dimensions

Dimensions      :      2-7/8 in OD
End Style      :      Grooved
Finish      :      Painted
Fitting/Connector Type      :      Coupling
Length      :      4.87 in
Material      :      Composite
Method of Manufacture      :      Injection-Molded
Nominal Size      :      2-1/2 in
Pressure Rating      :      150 psi
Series      :      171
Temperature Rating      :      33 to 130 deg F
Thickness      :      1.92 in
  • Designed for use in corrosive applications
  • Designed for use on reverse osmosis systems
  • For use on roll/cut grooved PVC
  • Utilizes patented Installation-Ready™ technology
  • Provides a flexible pipe joint which allows for expansion, contraction and deflection
  • Grade "E" EPDM gasket
  • Fiberglass reinforced plastic, stainless steel, PVC/CPVC pipe
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020171PEX_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020171PEX_Specification_Sheet.pdf
