Victaulic® L024177PEN Flexible Coupling, 2-1/2 in, Grooved End, Ductile Iron
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: L024177PEN_
- MPN: L024177PEN
- UPC: 883481355193
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Sold As: 2/BX
-
Price:
- Add To Favorites

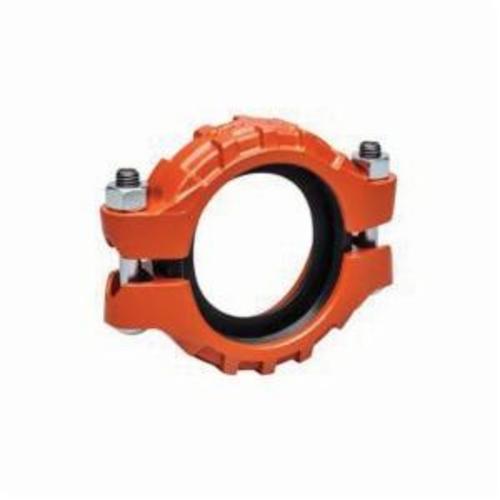

The Style 177N QuickVic flexible coupling is Installation-Ready™ and joins 2 to 8 in/50 to 200 mm standard roll grooved and cut grooved steel pipe.
Victaulic® QuickVic™ Coupling, Flexible, Series: 177N, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Grooved, 6.88 in Length, 1000 psi, Ductile Iron, Orange Enamel, 2.13 in W
| Dimensions | : | 2.13 in W |
| End Style | : | Grooved |
| Finish | : | Orange Enamel |
| Fitting/Connector Type | : | Coupling |
| Length | : | 6.88 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 2-1/2 in |
| Pressure Rating | : | 1000 psi |
| Series | : | 177N |
| Type | : | Flexible |
- Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 1000 psi/6900 kPa
- Working pressure dependent on material, wall thickness and size of pipe
- Features Installation-Ready™ technology
- Joins roll or cut grooved pipe, grooved fittings, valves, and accessories
- Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement
- Carbon steel bolts/nuts
