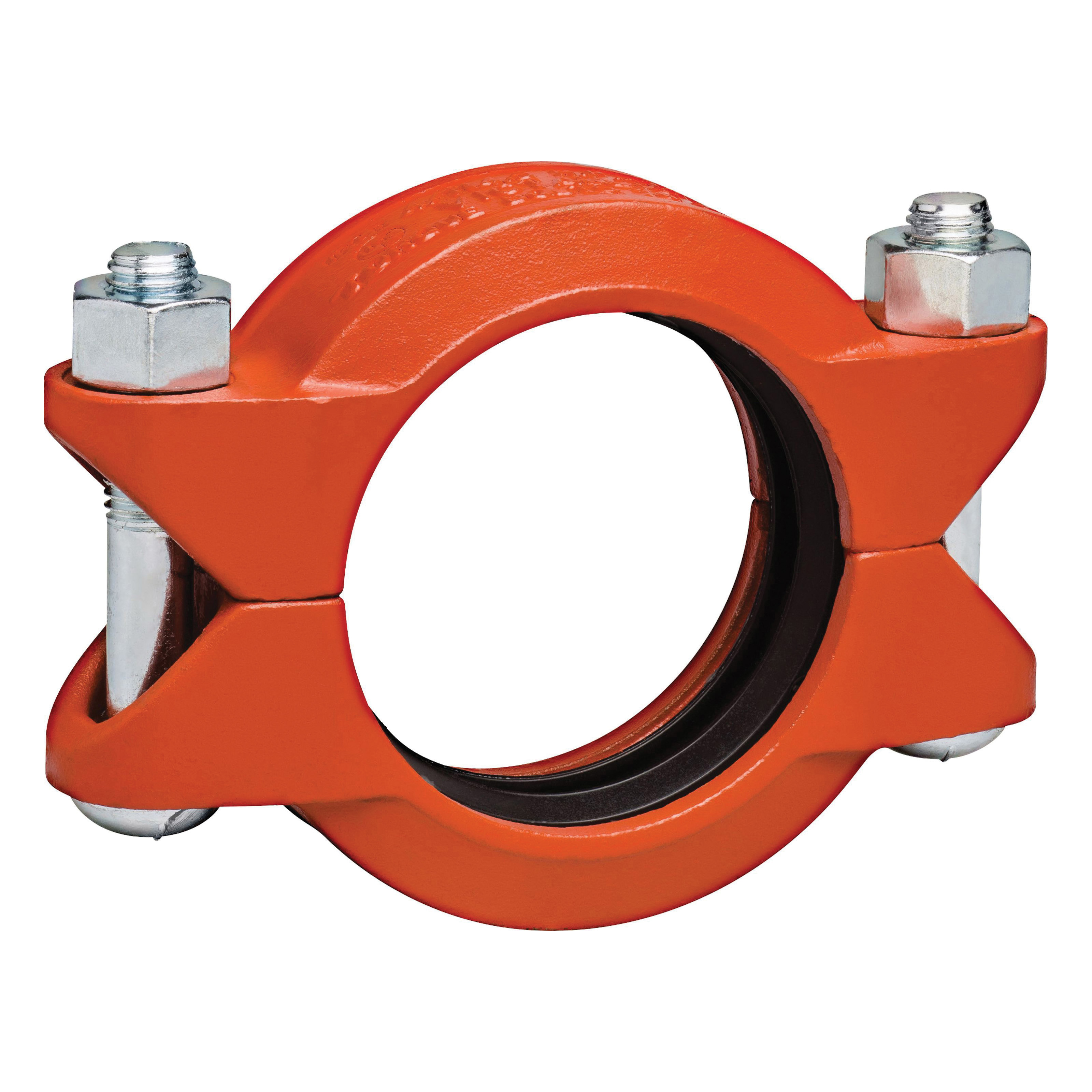

Victaulic® L030070PO1 HP-70 Rigid Coupling, 3 in, Grooved

Victaulic® L030070PO1 HP-70 Rigid Coupling, 3 in, Grooved

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L030070PO1_
  • MPN: L030070PO1
  • UPC: 088348180646
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Rigid Coupling, Series: HP-70, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 2 in Thickness, 7-3/4 in Length, 1000 psi, Ductile Iron, Orange Painted, Orange, 20 to 300 deg F, 3-1/2 in OD

Color      :      Orange
Dimensions      :      3-1/2 in OD
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Coupling
Length      :      7-3/4 in
Material      :      Ductile Iron
Nominal Size      :      3 in
Pressure Rating      :      1000 psi
Series      :      HP-70
Temperature Rating      :      20 to 300 deg F
Thickness      :      2 in
  • Heavy housing for high pressure service
  • Grade "O" gasket
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_FA89443X14_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L024070PT1_Specification_Sheet.pdf
