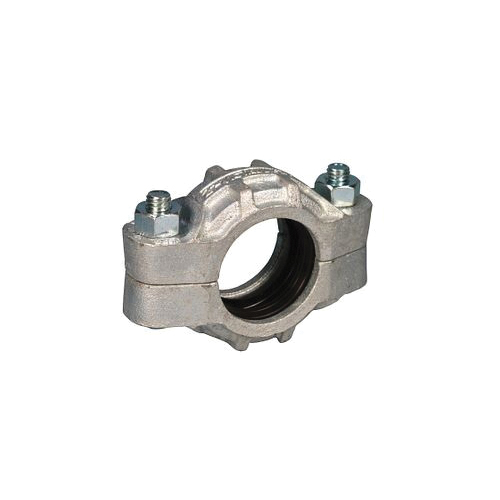

Victaulic® L060L77GEX L77 Flexible Coupling, Carbon Steel, 6 in

Victaulic® L060L77GEX L77 Flexible Coupling, Carbon Steel, 6 in

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L060L77GEX_
  • MPN: L060L77GEX
  • UPC: 883481987523
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Flexible Coupling, Series: L77, Fitting/Connector Type: Coupling, 6 in Nominal, OGS Grooved End Style, 2.13 in Thickness, 11.88 in Length, 1000 psi Pressure, Cast Method of Manufacture, Carbon Steel, Hot Dipped Galvanized, -50 to 230 deg F, 6-5/8 in OD, Domestic

Dimensions      :      6-5/8 in OD
Domestic/Import      :      Domestic
End Style      :      OGS Grooved
Finish      :      Hot Dipped Galvanized
Fitting/Connector Type      :      Coupling
Length      :      11.88 in
Material      :      Carbon Steel
Method of Manufacture      :      Cast
Nominal Size      :      6 in
Pressure Rating      :      1000 psi
Series      :      L77
Temperature Rating      :      -50 to 230 deg F
Thickness      :      2.13 in
  • Flexible pipe joint which allows for expansion, contraction and deflection
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_F014L10G00_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A010AQBNAP_Warranty.pdf
