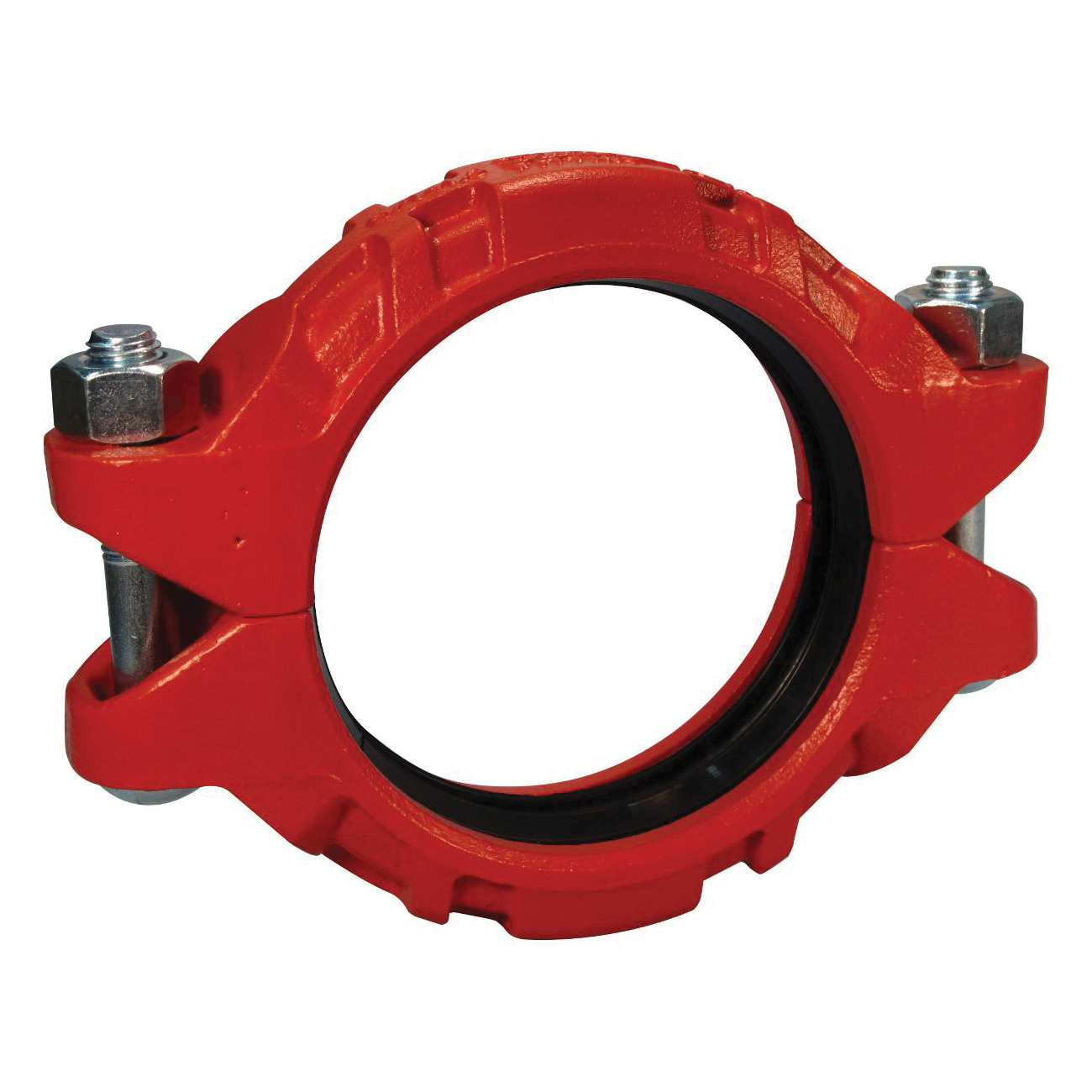

Victaulic® L060L79PE0 XL79 Flexible Coupling, 6 in, Ductile Iron, Red Enamel
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: L060L79PE0_
- MPN: L060L79PE0
- UPC: 883481336345
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
To join XL fittings to standard pipe and components Victaulic provides transition couplings. Two couplings are provided; the Style XL79 for direct connections of two XL fittings. The pressure rating for these couplings conforms to the pressure ratings for the Style 77 flexible coupling.
Victaulic® Coupling, Flexible, Series: XL79, Fitting/Connector Type: Coupling, 6 in Nominal, 2.38 in Thickness, 1000 psi, Ductile Iron, Red Enamel, 7-1/8 in OD
| Dimensions | : | 7-1/8 in OD |
| Finish | : | Red Enamel |
| Fitting/Connector Type | : | Coupling |
| Material | : | Ductile Iron |
| Nominal Size | : | 6 in |
| Pressure Rating | : | 1000 psi |
| Series | : | XL79 |
| Thickness | : | 2.38 in |
| Type | : | Flexible |
- For use with XL (extended life) fittings
- Style XL79 for fitting-to-fitting connections
- Grade "E" EPDM gasket
- 1000 psi working pressure
Specification Sheet
