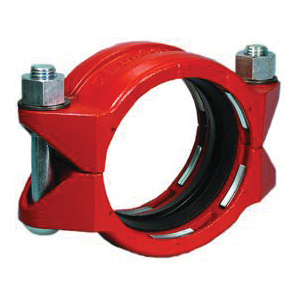

Victaulic® L080099PL0 99 Series Pipe Coupling, 8 in, Plain End Style
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: L080099PL0_
- MPN: L080099PL0
- UPC: 688304826504
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Specially designed for plain end carbon steel and stainless steel pipe. Gripping teeth provide a strong component for joining plain and beveled end (including Schedule 80 carbon steel pipe). Not to be used on plastic pipe, pipe with brittle linings, cast or ductile iron pipe nor any pipe with a surface hardness greater than 150 Brinell. Pressure ratings shown are for plain or beveled end standard wall carbon steel pipe.
Victaulic® Roust-A-Bout® Pipe Coupling, Series: 99 Series, Fitting/Connector Type: Coupling, 8 in Nominal, Plain, 13-1/4 in Length, 250 psi, Ductile Iron, Orange Enamel, 8-5/8 in OD x 5 in W
| Dimensions | : | 8-5/8 in OD x 5 in W |
| End Style | : | Plain |
| Finish | : | Orange Enamel |
| Fitting/Connector Type | : | Coupling |
| Length | : | 13-1/4 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 8 in |
| Pressure Rating | : | 250 psi |
| Series | : | 99 Series |
- Carbon steel, case hardened, electroplated jaws
- Grade L silicone gasket
- Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown
- Bolts/Nuts/Washers: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
- The 6 in/150 mm and larger sizes are supplied with hardened steel washers meeting ASTM F-436 Type 1 (Hot dipped galvanized steel)
- 7/8 x 5 in bolt/nut
- 2 No of bolts
