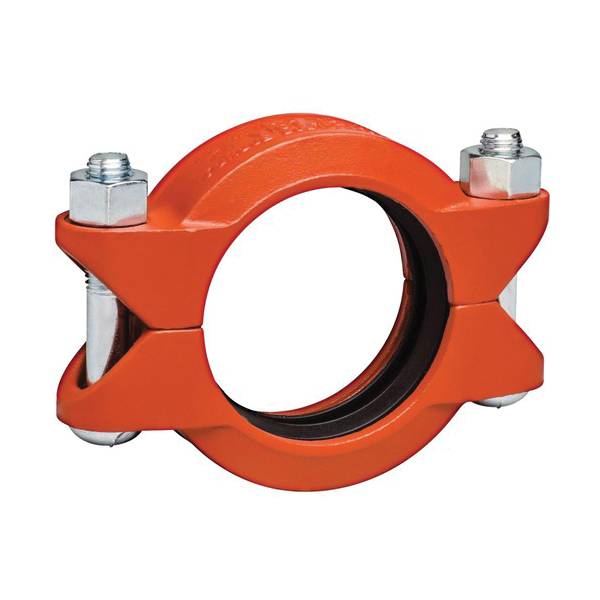

Victaulic® L120070PE1 HP-70 High Pressure Rigid Coupling, 12 in, Grooved, Ductile Iron

Victaulic® L120070PE1 HP-70 High Pressure Rigid Coupling, 12 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L120070PE1_
  • MPN: L120070PE1
  • UPC: 883481847230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Rigid Coupling, High Pressure, Series: HP-70, Fitting/Connector Type: Coupling, 12 in Nominal, Grooved End Style, 19.13 in Length, 800 psi Pressure, Ductile Iron, Orange Painted, -30 to 230 deg F, 12.75 in OD x 3.13 in W, Domestic

Dimensions      :      12.75 in OD x 3.13 in W
Domestic/Import      :      Domestic
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Coupling
Length      :      19.13 in
Material      :      Ductile Iron
Nominal Size      :      12 in
Pressure Rating      :      800 psi
Series      :      HP-70
Temperature Rating      :      -30 to 230 deg F
Type      :      High Pressure
  • Heavy housing for high pressure service
