Victaulic® Mover® C040150PE1 150 Expansion Joint, 4 in, Grooved, Ductile Iron
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: C040150PE1_
- MPN: C040150PE1
- UPC: 688304022180
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites

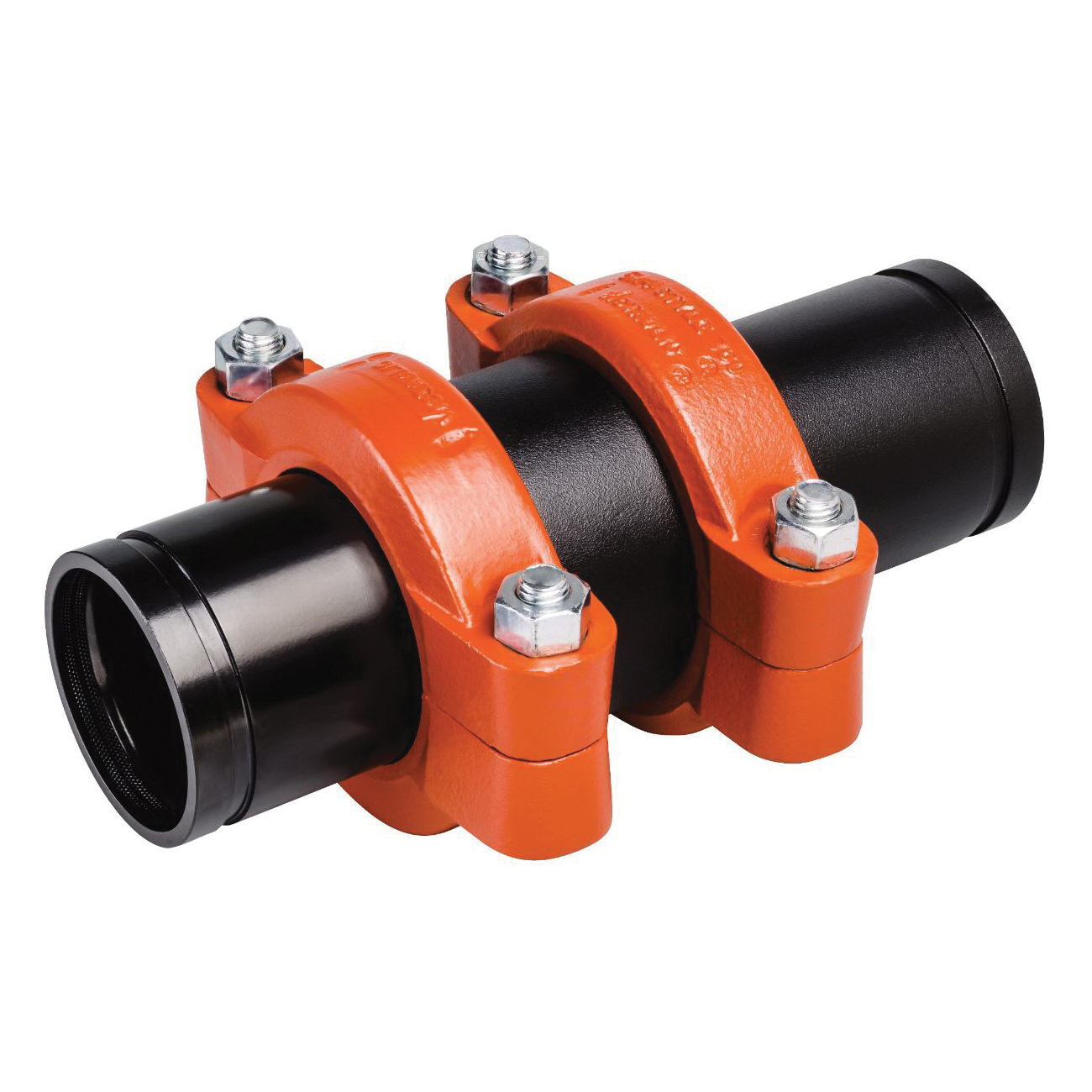

The Victaulic Style 150 Mover® is a slip-type expansion joint providing up to 3 in/80 mm axial end movement. Mover expansion joints permit easy adjustments prior to installation, to accommodate expansion, contraction or both. It is designed for service up to 230 deg F and for working pressures up to 350 psi/2400 kPa; depending on the type of coupling used for installation. Style 150 is supplied with grooved ends for installation with the use of Style 07 Zero-Flex® rigid couplings or with plain ends for use with Style 99 Roust-A-Bout® couplings.
Victaulic® Mover® Expansion Joint, Series: 150, Expansion Joint Fitting/Connector, 4 in Nominal, Grooved End Style, 17.13 in Length, 350 psi Pressure, Ductile Iron, Orange Enamel, 4-1/2 in OD x 9 in W Dimensions
| Dimensions | : | 4-1/2 in OD x 9 in W |
| End Style | : | Grooved |
| Finish | : | Orange Enamel |
| Fitting/Connector Type | : | Expansion Joint |
| Length | : | 17.13 in |
| Material | : | Ductile Iron |
| Nominal Size | : | 4 in |
| Pressure Rating | : | 350 psi |
| Series | : | 150 |
- Grade "E" EPDM gasket
- 350 psi working pressure
Specification Sheet
