Victaulic® L024877HP0 L024877HP0_
  1. pin-int

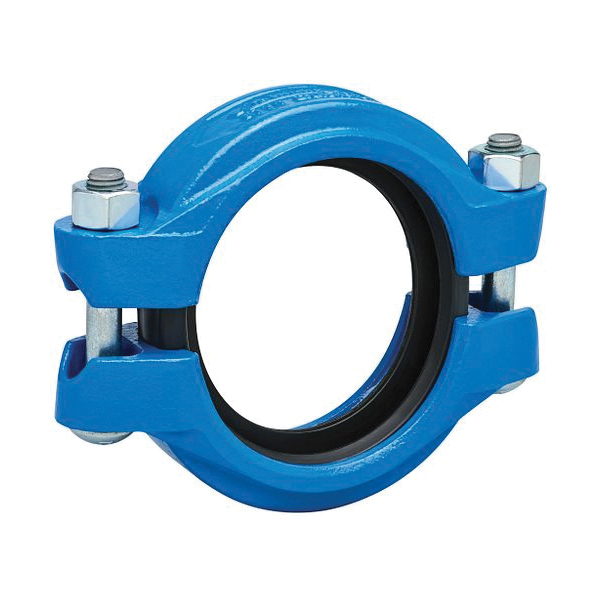

Victaulic® QuickVic™ Installation-Ready™ L024877HP0 877N Flexible Coupling, 2-1/2 in, Ductile Iron

Victaulic® QuickVic™ Installation-Ready™ L024877HP0 877N Flexible Coupling, 2-1/2 in, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L024877HP0_
  • MPN: L024877HP0
  • UPC: 883481940214
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® QuickVic™ Installation-Ready™ Flexible Coupling, Series: 877N, Fitting/Connector Type: Coupling, 2-1/2 in Nominal, Up to 1000 psi Pressure, Ductile Iron, Blue Enamel Coated, 0 to 180 deg F, 2-7/8 in OD, Domestic

Dimensions      :      2-7/8 in OD
Domestic/Import      :      Domestic
Finish      :      Blue Enamel Coated
Fitting/Connector Type      :      Coupling
Material      :      Ductile Iron
Nominal Size      :      2-1/2 in
Pressure Rating      :      Up to 1000 psi
Series      :      877N
Temperature Rating      :      0 to 180 deg F
  • For use on stainless steel and galvanized carbon steel potable water piping systems only
  • Utilizes grade P gasket material for improved resistance to typical potable water disinfectants
  • Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020877GP0_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_A010AQBNAP_Warranty.pdf
