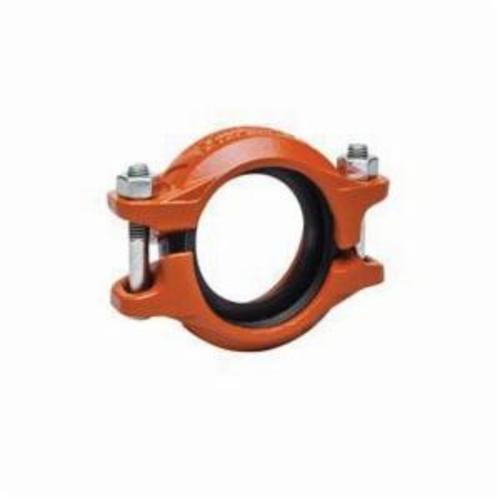

Victaulic® QuickVic™ L030107PE0 107N Pre-Assembled Rigid Coupling, 3 in, Grooved, Ductile Iron

Victaulic® QuickVic™ L030107PE0 107N Pre-Assembled Rigid Coupling, 3 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L030107PE0_
  • MPN: L030107PE0
  • UPC: 688304119644
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® QuickVic™ Rigid Coupling, Pre-Assembled, Series: 107N, Fitting/Connector Type: Coupling, 3 in Nominal, Grooved, 7.36 in Length, 750 psi, Ductile Iron, Orange Enamel, 3-1/2 in OD x 1.97 in W

Dimensions      :      3-1/2 in OD x 1.97 in W
End Style      :      Grooved
Finish      :      Orange Enamel
Fitting/Connector Type      :      Coupling
Length      :      7.36 in
Material      :      Ductile Iron
Nominal Size      :      3 in
Pressure Rating      :      750 psi
Series      :      107N
Type      :      Pre-Assembled
  • Accommodates pressures ranging from full vacuum (29.9 in Hg/760 mm Hg) up to 750 psi/5171 kPa
  • Joins carbon steel and stainless steel pipe
  • Provides a rigid pipe joint designed to restrict axial or angular movement
  • Working pressure dependent on material, wall thickness and size of pipe
  • Operating temperature dependent on gasket selection from section 3.0
  • 0.15 in allowable pipe end separation, (2) 1/2 X 3 in bolt/nut, 4.95 in body outside diameter
  • EPDM gasket
  • Carbon steel bolts/nuts
