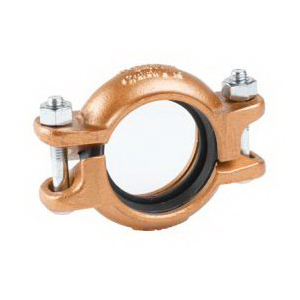

Victaulic® QuickVic™ L080607PEX Pipe Rigid Coupling With Gasket, 8 in, Grooved, Ductile Iron

Victaulic® QuickVic™ L080607PEX Pipe Rigid Coupling With Gasket, 8 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L080607PEX_
  • MPN: L080607PEX
  • UPC: 883481146265
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The patented Style 607 rigid coupling is installation-ready™ greatly reducing handling and assembly time. Featuring new "EHP" gasket technology, the Style 607 can be used on systems with temperatures operating up to 250 deg F/121 deg C.

Victaulic® QuickVic™ Pipe Rigid Coupling, Series: 607, Fitting/Connector Type: Coupling, 8 in Nominal, Grooved, 300 psi, Ductile Iron, Copper Colored Alkyd Enamel

End Style      :      Grooved
Finish      :      Copper Colored Alkyd Enamel
Fitting/Connector Type      :      Coupling
Material      :      Ductile Iron
Nominal Size      :      8 in
Pressure Rating      :      300 psi
Series      :      607
  • For use with copper pipes
  • Grade E EPDM gasket
  • 9.88 in Dia x 12.75 in L pre-assembled, 9.63 in Dia x 12.75 in L x 2 in W joint assembled
  • Warning: Depressurize and drain the piping system before attempting to install, remove or adjust any Victaulic piping products
  • Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L020607PE0_Specification_Sheet.pdf
