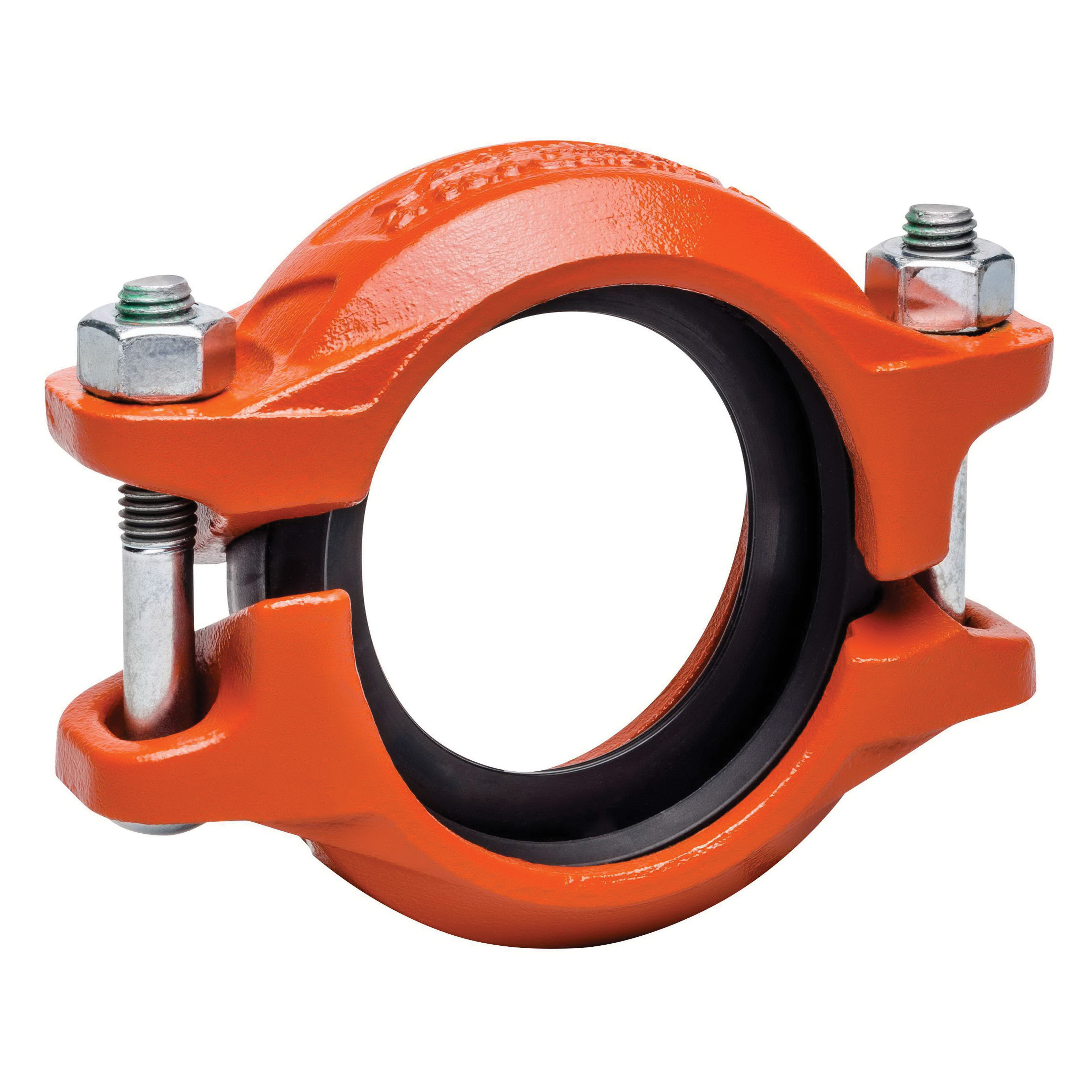

Victaulic® Quickvic™ L100107PTN Rigid Coupling, 10 in, Grooved End, Ductile Iron

Victaulic® Quickvic™ L100107PTN Rigid Coupling, 10 in, Grooved End, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: L100107PTN_
  • MPN: L100107PTN
  • UPC: 883481316187
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Quickvic™ Rigid Coupling, Series: 107N, Fitting/Connector Type: Coupling, 10 in Nominal, Grooved, 2-3/4 in Thickness, 17.13 in Length, 750 psi, Ductile Iron, Orange Painted, Orange, -20 to 180 deg F, 10-3/4 in OD

Color      :      Orange
Dimensions      :      10-3/4 in OD
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Coupling
Length      :      17.13 in
Material      :      Ductile Iron
Nominal Size      :      10 in
Pressure Rating      :      750 psi
Series      :      107N
Temperature Rating      :      -20 to 180 deg F
Thickness      :      2-3/4 in
  • Angled bolt pad provides rigidity
  • Grade "T" nitrile gasket
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_K020905F00_Catalog.pdf
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L100107PTN_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_L100107PTN_Specification_Sheet.pdf
