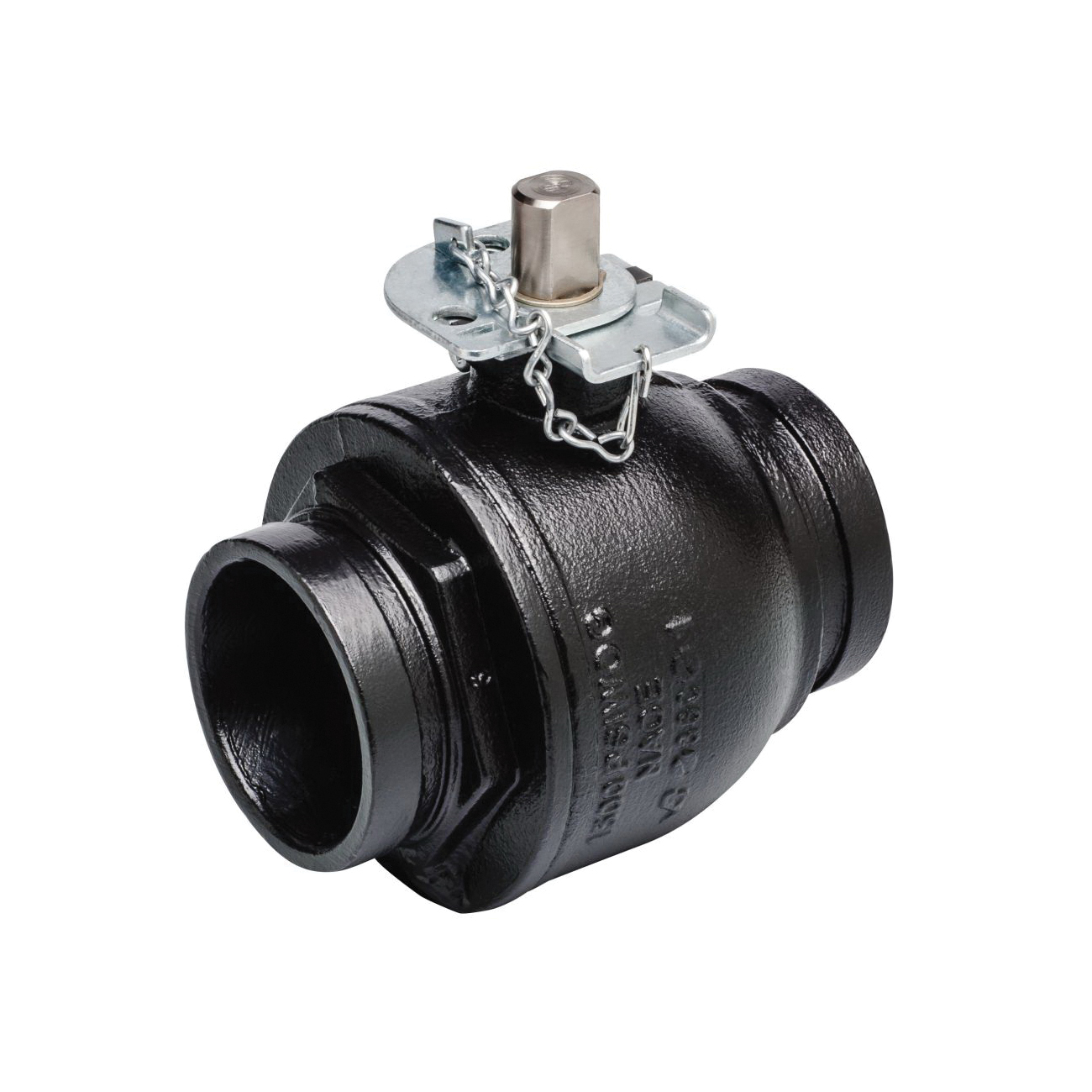

Victaulic® V020727P0A 727 High Pressure Ball Valve, 2 in Nominal, Grooved End Style, Ductile Iron Body, Full Port, Nitrile Softgoods

The Series 727 is a high-pressure, NACE compliant ball valve with grooved ends. This two piece, valve features a floating ball for lower torque requirements. Series 727 valves are capable of pressures up to 1500 psi for sizes 2 to 6 in. The internal design has been streamlined to provide excellent flow characteristics. The valve features an electroless nickel plated carbon steel ball and stem with stainless steel option. The seat material is lubricated nylon. This valve is offered with integral/tamper resistant lock. The Series 727 valve is available as either grooved by grooved or grooved by male threaded.

Victaulic® Ball Valve, High Pressure, Series: 727, 2 in Nominal, Grooved, 1500 psi, Full Port, Media: Water, Bare Actuator, Carbon Steel Ball, 5-1/2 in Inlet to Outlet Length, 3.63 in Top to Inlet Center, Ductile Iron Body, Carbon Steel Stem and Lubricated Nylon Seat Trim, Nitrile, 2-3/8 in OD

• End cap: Ductile iron conforming to ASTM A 395/395M-99 Grade 60-40-18
• Seats: Lubricated nylon, -20 to 150 deg F continuous temperature range
• Integral locking drive components: Stamped carbon steel ASTM A1008 zinc plated ASTM B633 SCII Type 3
• Standard ball without handle
• Electroless nickel plated (ENP) carbon steel trim
• Nitrile seal

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V020727P0A_Specification_Sheet.pdf
