Victaulic® V030712PT2 151326_
  1. pin-int

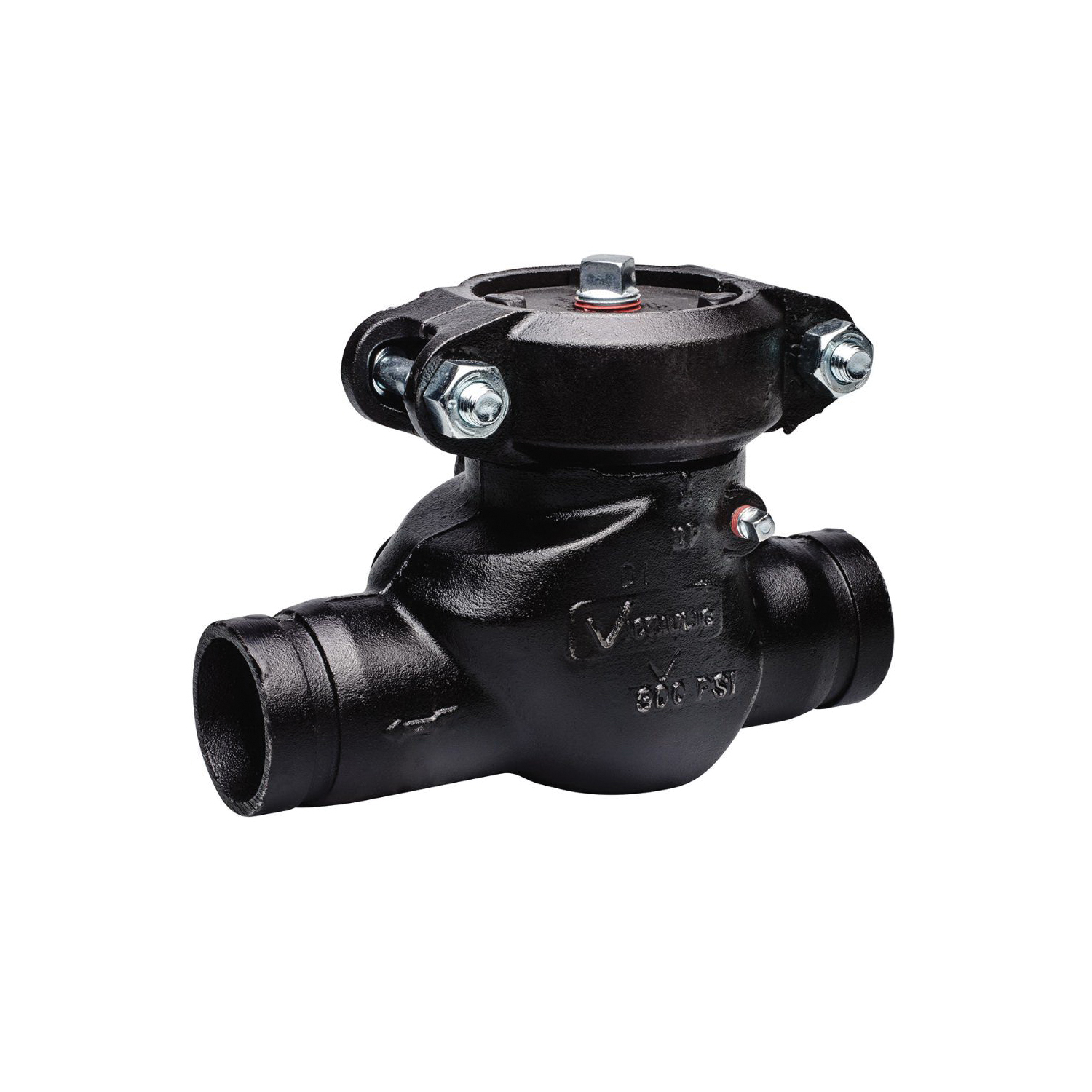

Victaulic® V030712PT2 712 Swing Check Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body

Victaulic® V030712PT2 712 Swing Check Valve, 3 in Nominal, Grooved End Style, Ductile Iron Body

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: 151326_
  • MPN: V030712PT2
  • UPC: 688304073700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Designed for use with standard Victaulic grooved fittings and couplings. Large closure access bonnet permits easy internal coating for corrosive services. Stainless clapper has bonded disc for coating protection.

Victaulic® Swing Check Valve, Series: 712, 3 in Nominal, Grooved End Style, 300 psi Pressure, No Low Lead Compliance, Media: Water, 10-3/4 in Inlet to Outlet Length, 5-3/4 in Top to Inlet Center, Ductile Iron Body, Nitrile Trim, 3-1/2 in OD

Body Material      :      Ductile Iron
Dimensions      :      3-1/2 in OD
End Style      :      Grooved
Inlet to Outlet Length      :      10-3/4 in
Low Lead Compliance      :      No
Media      :      Water
Nominal Size      :      3 in
Pressure Rating      :      300 psi
Series      :      712
Top to Inlet Center      :      5-3/4 in
Trim Material      :      Nitrile
  • Controls flow through the valve with a stainless steel clapper
  • Nitrile seat
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V020712PE2_Specification_Sheet.pdf
