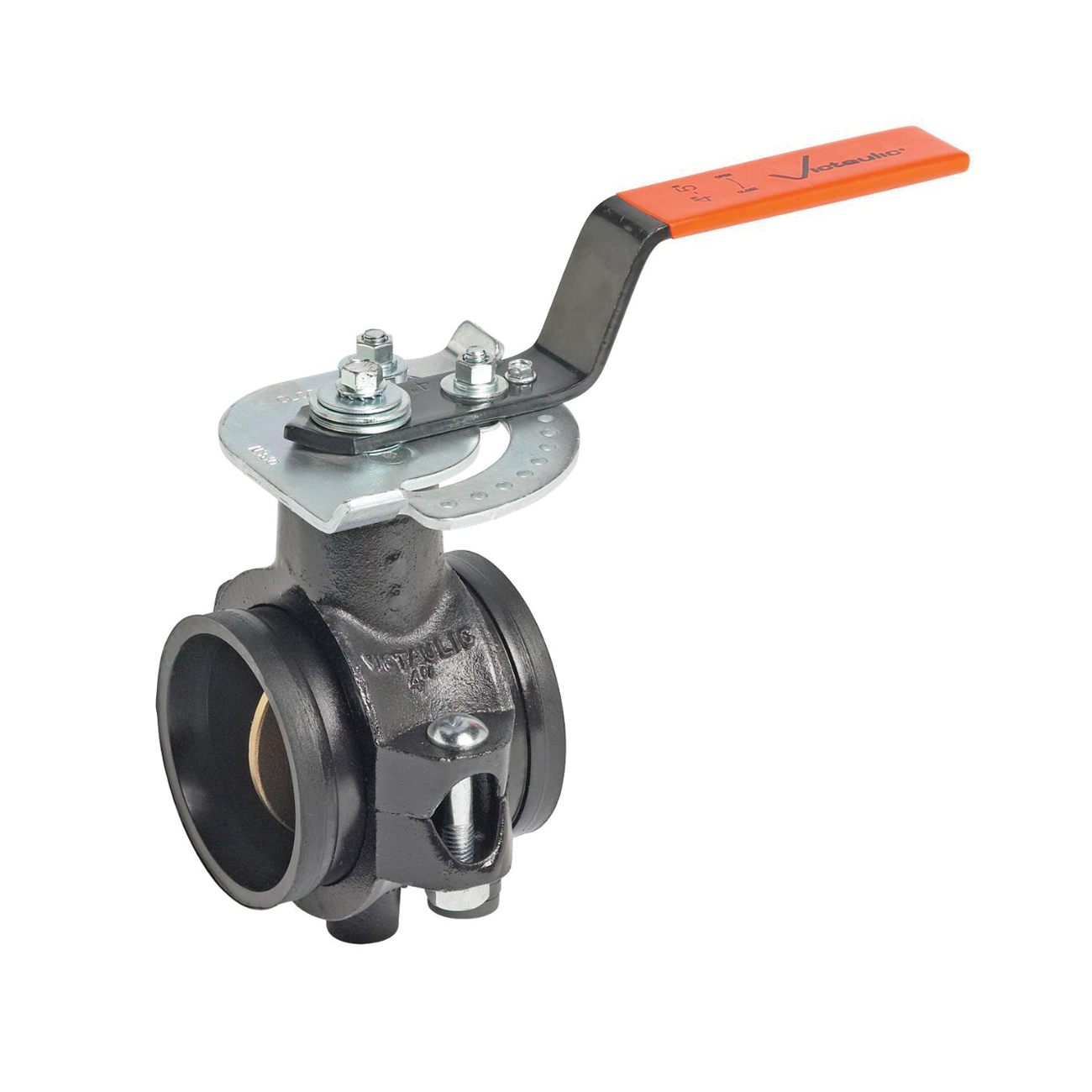

Victaulic® V060700XEJ 700 Butterfly Valve, 6 in

Victaulic® Series 700 butterfly valves are designed for bubble-tight shut-off to 200 psi/1400 kPa. Two piece stem permits narrow disc design for low pressure drop performance and is self-centering for positive shut-off. Valves are available with liners molded from EPDM for water service to 230 deg F or nitrile for oil services to 180 deg F. Refer to Liner/Disc Selection for general service recommendations. Series 700 butterfly valves are available in 1-1/2 to 6 in sizes. The body is fully rubber lined, and the valve housing is cast of durable ductile iron. Standard disc is aluminum bronze (also available in 316 stainless steel), with a 2-position cast handle with padlock feature as the standard operator.

Victaulic® Butterfly Valve, Series: 700, 6 in Nominal, Grooved, -30 to 230 deg F, Lever Handle Actuator, 5.81 in Inlet to Outlet Length, 8.78 in Top to Inlet Center, Carbon Steel Body, Aluminum Bronze Disc, 416 Stainless Steel (Stem) Stem & Pin Material, Elastomer Lined, 6-5/8 in OD

• 2-piece stem permits narrow disc design for low pressure drop performance
• Housing - Ductile iron conforming to ASTM A-536, grade 65-45-12
• 2-position cast handle with padlock feature as the standard operator
• Grade E EPDM seat

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_CD35920GEB_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V014700SEJ_Specification_Sheet.pdf
