Victaulic® V080416XE0 V080416XE0_
  1. pin-int

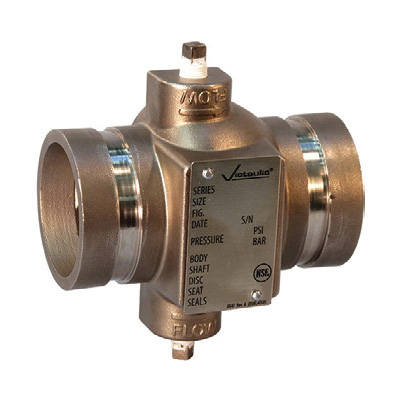

Victaulic® V080416XE0 416 Check Valve, 8 in

Victaulic® V080416XE0 416 Check Valve, 8 in

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: V080416XE0_
  • MPN: V080416XE0
  • UPC: 883481624053
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Check Valve, Series: 416, 8 in Nominal, Grooved End Style, 300 psi Pressure, -30 to 230 deg F, No Low Lead Compliance, Media: Water, 14.63 in Inlet to Outlet Length, 7-1/4 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Trim, EPDM/PTFE Softgoods

Body Material      :      Stainless Steel
End Style      :      Grooved
Inlet to Outlet Length      :      14.63 in
Low Lead Compliance      :      No
Media      :      Water
Nominal Size      :      8 in
Pressure Rating      :      300 psi
Series      :      416
Softgoods Material      :      EPDM/PTFE
Temperature Rating      :      -30 to 230 deg F
Top to Inlet Center      :      7-1/4 in
Trim Material      :      Stainless Steel
  • Resilient-seat spring return swing check valve designed for horizontal or vertical (upward flow) applications
  • EPDM seat, PTFE washer
  • Stainless steel disc/spring/seat
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_FA89443X14_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_V080416XE0_Specification_Sheet.pdf
