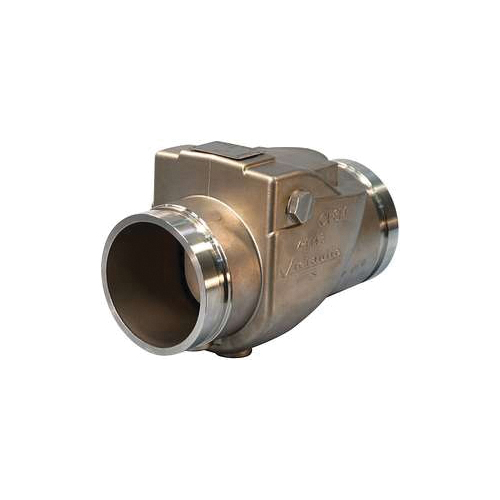

Victaulic® V100416XT0 416 Series Swing Check Valve, 10 in

Victaulic® V100416XT0 416 Series Swing Check Valve, 10 in

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: V100416XT0_
  • MPN: V100416XT0
  • UPC: 883481689991
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Victaulic® Swing Check Valve, Series: 416 Series, 10 in Nominal, Grooved End Style, 300 psi Pressure, -20 to 180 deg F, Media: Water, Spring Actuator, 16-3/4 in Inlet to Outlet Length, 8-1/2 in Top to Inlet Center, Stainless Steel Body, Nitrile/Stainless Steel Trim, Polytetrafluoroethylene Softgoods, 10.75 in OD x 11.63 in W, Domestic

Actuator Type      :      Spring
Body Material      :      Stainless Steel
Dimensions      :      10.75 in OD x 11.63 in W
Domestic/Import      :      Domestic
End Style      :      Grooved
Inlet to Outlet Length      :      16-3/4 in
Media      :      Water
Nominal Size      :      10 in
Pressure Rating      :      300 psi
Series      :      416 Series
Softgoods Material      :      Polytetrafluoroethylene
Temperature Rating      :      -20 to 180 deg F
Top to Inlet Center      :      8-1/2 in
Trim Material      :      Nitrile/Stainless Steel
  • Features original groove system (OGS) grooved ends
  • Resilient seat spring return swing check valve designed for horizontal or vertical (upward flow) applications
  • Without drain tap
  • Stainless steel disc/spring/nitrile seat
  • Polytetrafluoroethylene washer
