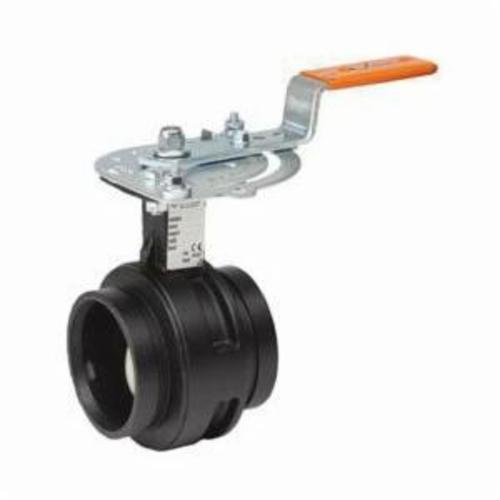

Victaulic® Vic-300 MasterSeal™ V030761SE2 761 Butterfly Valve, 3 in

Victaulic® Vic-300 MasterSeal™ V030761SE2 761 Butterfly Valve, 3 in

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: V030761SE2_
  • MPN: V030761SE2
  • UPC: 688304811364
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

These butterfly valves are designed for pressures ranging from vacuum to 300 psi/2065 kPa and for bi-directional, dead end services to full working pressure. Valve is provided with either 10-position handle, lever lock or gear operator.

Victaulic® Vic-300 MasterSeal™ Butterfly Valve, Series: 761, 3 in Nominal, Grooved End Style, -30 to 250 deg F, Media: Water, Lever-Lock Handle Actuator, 3.77 in Inlet to Outlet Length, Carbon Steel Body, Ductile Iron Disc, 416 Stainless Steel (Stem) Stem & Pin, Alkyd Enamel Coated, Black Oxide

Actuator Type      :      Lever-Lock Handle
Body Material      :      Carbon Steel
Color      :      Black Oxide
Disc Material      :      Ductile Iron
End Style      :      Grooved
Finish      :      Alkyd Enamel Coated
Inlet to Outlet Length      :      3.77 in
Media      :      Water
Nominal Size      :      3 in
Series      :      761
Stem & Pin Material      :      416 Stainless Steel (Stem)
Temperature Rating      :      -30 to 250 deg F
  • Disc electroless nickel coated ductile iron
  • Seat patented pressure enhanced rubber seat design
  • Drive hub designed to accept nearly all types of actuation
  • Stem seals prevents leakage of media
  • Upper and lower stem bearings helps maintain constant low torque values for the life of the valve
  • Stem blow-out proof design utilizing stainless steel
  • Grooved end body reduces the weight of the valve and makes it easier to install
  • Seal cartridge patented seal cartridge houses stem seals
  • Thermal barrier reduces condensation on gear operators when installed in chilled water applications
  • Body - Ductile iron conforming to ASTM A-536, grade 65-45-12
  • End face, 2 to 6 in ductile iron conforming to ASTM A-536, grade 65-45-12
  • Grade E green color code EPDM seat
  • Designed for bi-directional, dead end services to full working pressure
  • Zinc plated carbon steel handle with zinc plated carbon steel latch plate and carbon steel zinc plated fasteners, infinitely variable, padlockable and includes memory stop
  • 10-position handle operator with memory stop
  • Fiberglass or 316 stainless steel with TFE lining bearing
  • Carbon steel stem retaining ring
  • Standard C36000 brass stem seal cartridge
