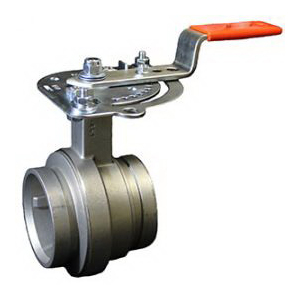

Victaulic® Vic-300 MasterSeal™ V060461XE6 461 Butterfly Valve, 6 in
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: V060461XE6_
- MPN: V060461XE6
- UPC: 088348137336
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Vic-300 MasterSeal™ stainless steel butterfly valves are designed for pressures ranging from full vacuum to 300 psi/2065 kPa and for bi-directional, dead end services to full working pressure. The valve features a patented seat design that assures full 360 deg sealing. Available in 2 to 8 in/50 to 200 mm sizes the valve is offered with a standard ISO mounting flange to accept most gear and power actuators.
Victaulic® Vic-300 MasterSeal™ Butterfly Valve, Series: 461, 6 in Nominal, Grooved, -30 to 230 deg F, Media: Water, Gear Actuator, 5.88 in Inlet to Outlet Length, 10-1/4 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem) Stem & Pin Material, 6.625 in OD x 14.13 in H
| Actuator Type | : | Gear |
| Body Material | : | Stainless Steel |
| Dimensions | : | 6.625 in OD x 14.13 in H |
| Disc Material | : | Stainless Steel |
| End Style | : | Grooved |
| Inlet to Outlet Length | : | 5.88 in |
| Media | : | Water |
| Nominal Size | : | 6 in |
| Series | : | 461 |
| Stem & Pin Material | : | 17-4PH Stainless Steel (Stem) |
| Temperature Rating | : | -30 to 230 deg F |
| Top to Inlet Center | : | 10-1/4 in |
- Designed for bi-directional, dead end services to full working pressure
- Accommodates 2 in of insulation
- Gear operator with chain wheel
- EPDM seat
