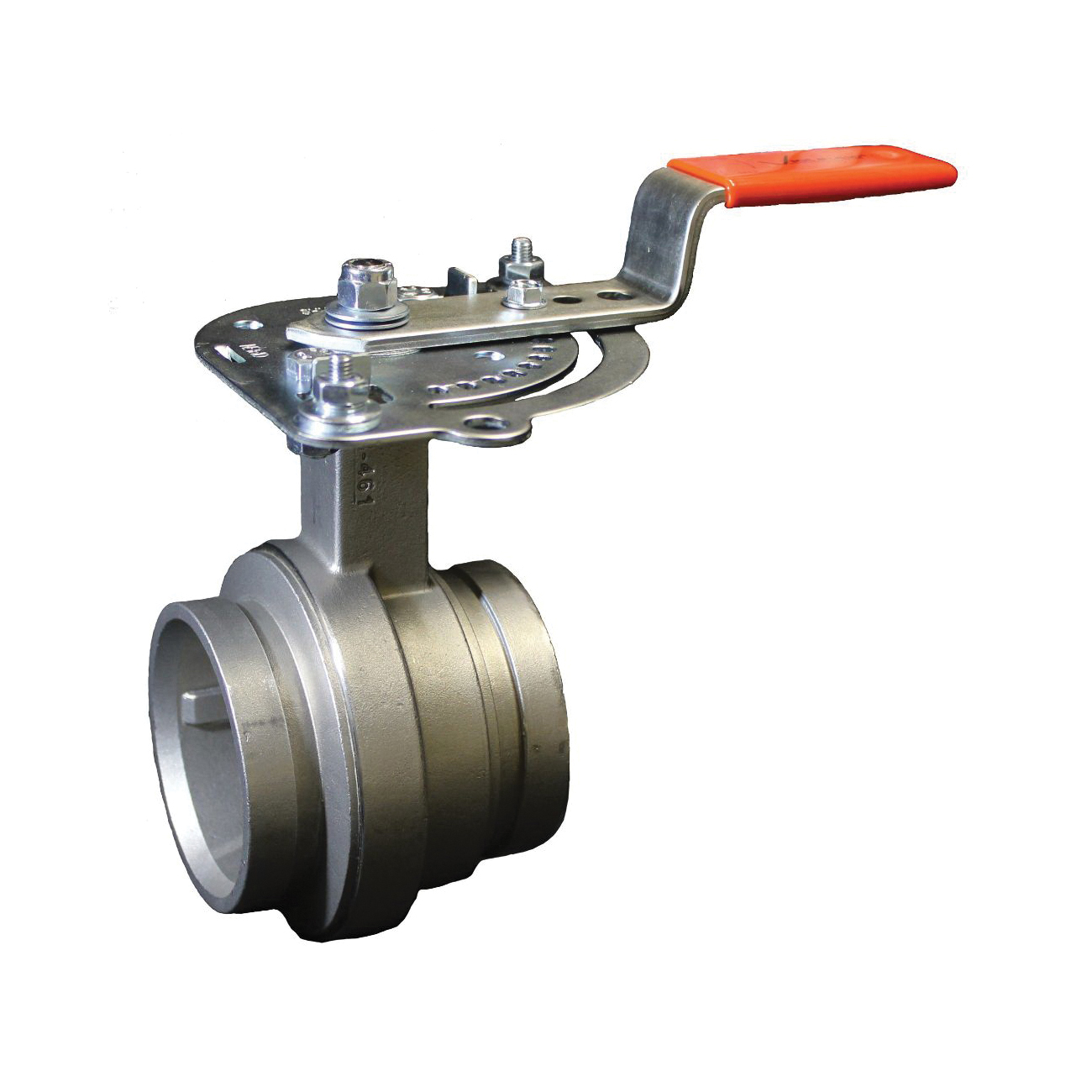

Victaulic® Vic-300 MasterSeal™ V761461XE3 461 Butterfly Valve, 2-1/2 in
- Manufacturer: Victaulic
- Brand Name: Victaulic®
- Part#: V761461XE3
- MPN: V761461XE3
- UPC: 088348138593
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
- Add To Favorites
Victaulic® Vic-300 MasterSeal™ Butterfly Valve, Series: 461, 2-1/2 in Nominal, Grooved, -30 to 230 deg F, Media: Water, Gear Actuator, 3-3/4 in Inlet to Outlet Length, 7-1/4 in Top to Inlet Center, Stainless Steel Body, Stainless Steel Disc, 17-4PH Stainless Steel (Stem) Stem & Pin Material, 3 in OD x 9.5 in H
| Actuator Type | : | Gear |
| Body Material | : | Stainless Steel |
| Dimensions | : | 3 in OD x 9.5 in H |
| Disc Material | : | Stainless Steel |
| End Style | : | Grooved |
| Inlet to Outlet Length | : | 3-3/4 in |
| Media | : | Water |
| Nominal Size | : | 2-1/2 in |
| Series | : | 461 |
| Stem & Pin Material | : | 17-4PH Stainless Steel (Stem) |
| Temperature Rating | : | -30 to 230 deg F |
| Top to Inlet Center | : | 7-1/4 in |
- Designed for bi-directional, dead end services to full working pressure
- Accommodates 2 in of insulation
- EPDM seat
Specification Sheet
