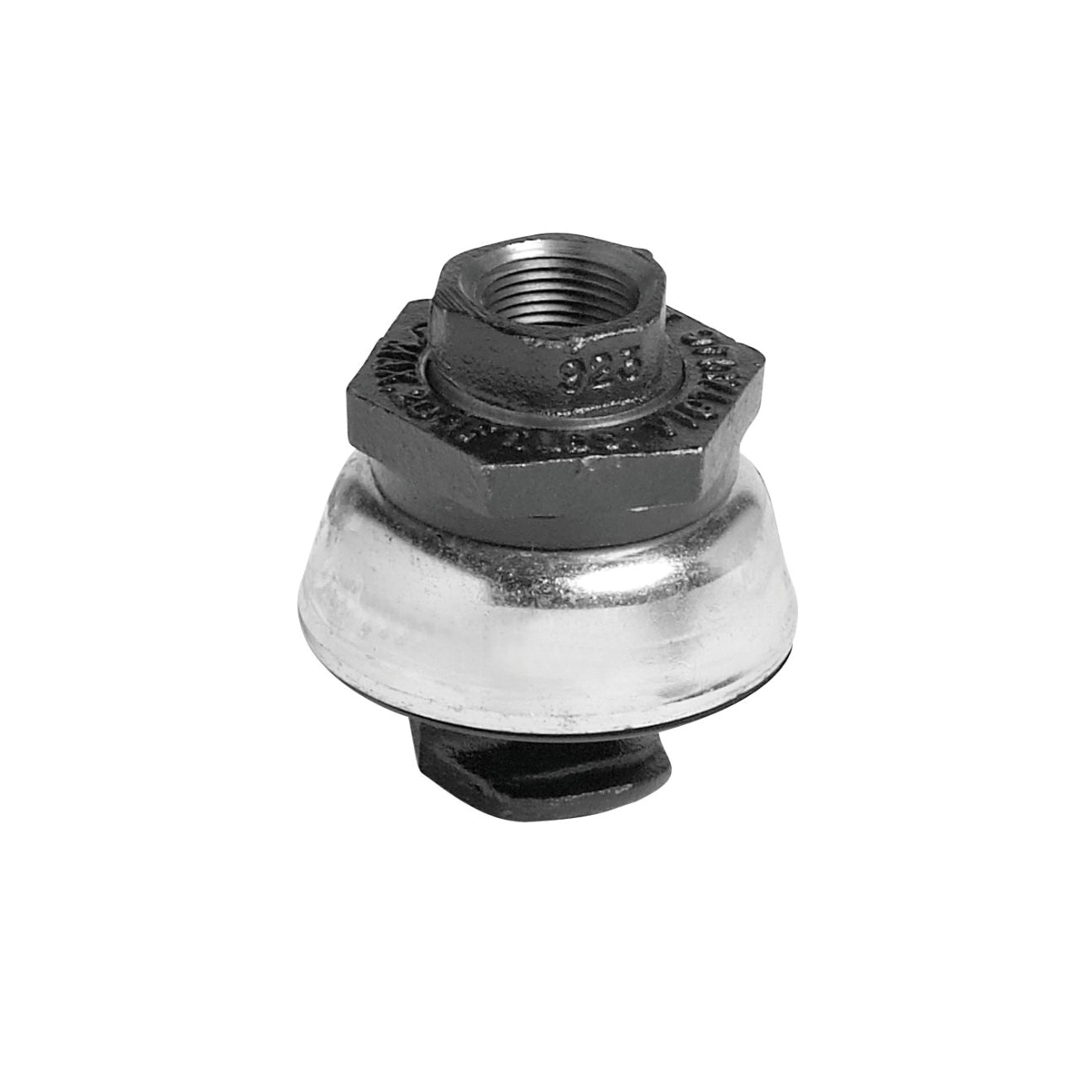

Victaulic® Vic-Let™ CM20923PE0 Strapless Outlet, 3/4 in, FNPT, Ductile Iron, Painted Black

The Victaulic® Style 923 Vic-Let™ outlet provides a fast, easy pipe outlet without the need for a strap or lower housing to wrap around the pipe. The Vic-Let™ outlet main body casting has integral lugs which insert into a hole cut in the pipe, gripping against the pipe's inside wall, while a nut threaded on the main body is tightened to cause the gasket and containing collar to be forced against the pipe's outside surface resulting in a rigid joint. Both sizes of Style 923 Vic-Let™ outlets are rated at 300 psi/2065 kPa working pressure for standard weight steel pipe for sizes 4 to 8 in/100 to 200 mm and Schedules 10 to SCH 40/STD steel pipe for sizes 10 in/250 mm and larger. Vic-Let™ outlets 4 to 12 in/100 to 300 mm are UL/ULC Listed for fire protection services at 175 psi/1270 kPa.

Victaulic® Vic-Let™ Strapless Outlet, Series: 923, Fitting/Connector Type: Outlet, 3/4 in Nominal, FNPT, 3 in W Length, SCH 40/STD, 300 psi, Ductile Iron, Painted Black Enamel, 3 in H

• Grade E EPDM gasket
• Collar: Hot rolled, pickled and oiled steel conforming to ASTM A-569, zinc electroplated to ASTM B-633
• Provides a fast, easy pipe outlet without the need for a strap or lower housing

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_CD35920GEB_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_R000900240_Specification_Sheet.pdf
