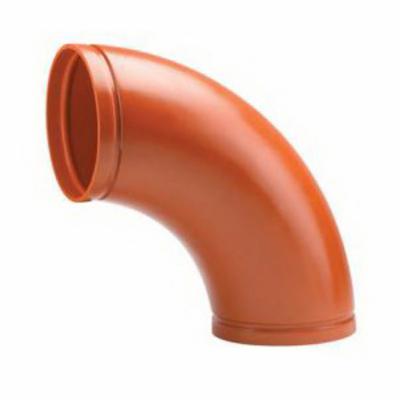

Victaulic® W160010P00 Pipe 90 deg Elbow, 16 in, Grooved, Ductile Iron

Victaulic® W160010P00 Pipe 90 deg Elbow, 16 in, Grooved, Ductile Iron

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: W160010P00_
  • MPN: W160010P00
  • UPC: 688304835872
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Pressure rated to conform to the pressure ratings of Victaulic Style W77/W07 AGS couplings. Supplied with AGS grooves to permit fast installation without field preparation. Advance Groove System (AGS) products must not be used to join original groove system (OGS) products.

Victaulic® AGS™ Pipe Elbow, Series: W10, Fitting/Connector Type: 90 deg Elbow, 16 in Nominal, Grooved, 350 psi, Ductile Iron, Orange Enamel, 16 in OD

Dimensions      :      16 in OD
End Style      :      Grooved
Finish      :      Orange Enamel
Fitting/Connector Type      :      90 deg Elbow
Material      :      Ductile Iron
Nominal Size      :      16 in
Pressure Rating      :      350 psi
Series      :      W10
  • AGS products must not be used on pipe that has been grooved using standard grooving rolls
  • Failure to use AGS products on AGS grooved pipe could result in serious personal injury, property damage, joint leakage or joint separation
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
