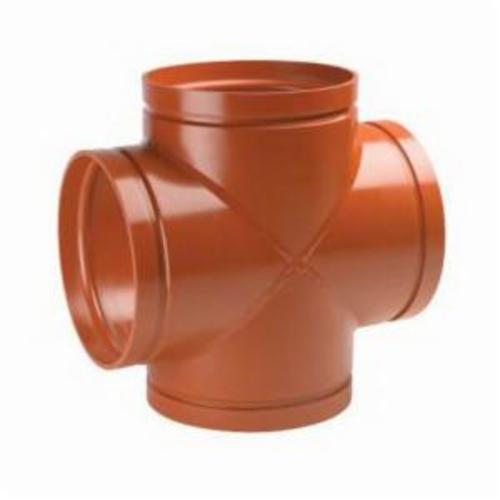

Victaulic® W200035P00 W35 Pipe Cross, Carbon Steel, 20 in, Grooved

Victaulic® W200035P00 W35 Pipe Cross, Carbon Steel, 20 in, Grooved

  • Manufacturer: Victaulic
  • Brand Name: Victaulic®
  • Part#: W200035P00_
  • MPN: W200035P00
  • UPC: 688304872990
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

Pressure rated to conform to the pressure ratings of Victaulic® Style W77/W07 AGS couplings. Supplied with AGS grooves to permit fast installation without field preparation. Advance groove system (AGS) products must not be used to join original groove system (OGS) products.

Victaulic® AGS™ Pipe Cross, Series: W35, Fitting/Connector Type: Cross, 20 in Nominal, Grooved, 20 in Length, Carbon Steel, Orange Painted, 20 in OD

Dimensions      :      20 in OD
End Style      :      Grooved
Finish      :      Orange Painted
Fitting/Connector Type      :      Cross
Length      :      20 in
Material      :      Carbon Steel
Nominal Size      :      20 in
Series      :      W35
  • AGS products must not be used on pipe that has been grooved using standard grooving rolls
  • Failure to use AGS products on AGS grooved pipe could result in serious personal injury, property damage, joint leakage or joint separation
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Victaulic_NM18000026_Catalog.pdf
