NIBCO® NL9300A 257692
  1. pin-int

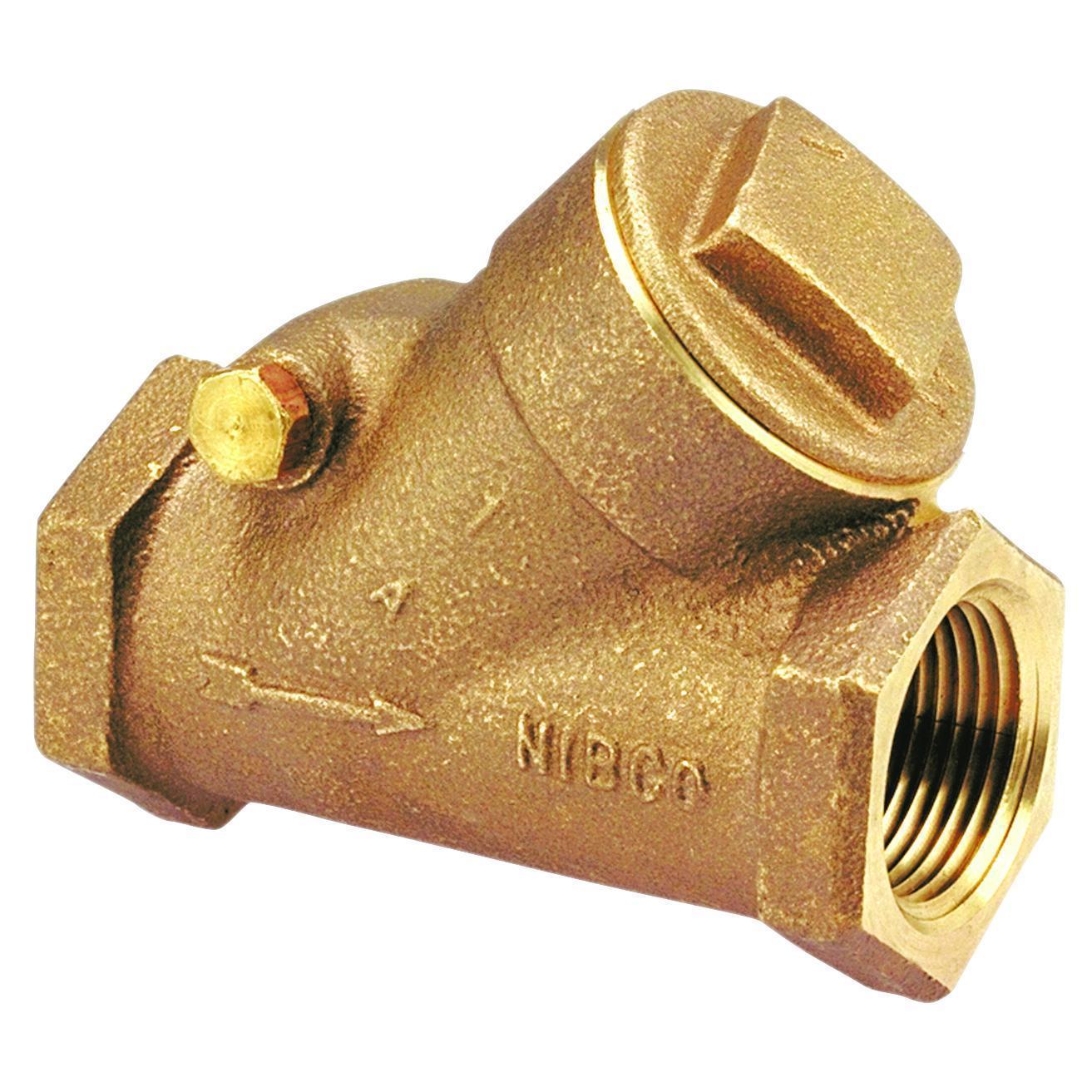

Y-Pattern Swing Check Valve, 1 in Nominal, NPT End Style, 300 lb, PTFE, Bronze Body

Y-Pattern Swing Check Valve, 1 in Nominal, NPT End Style, 300 lb, PTFE, Bronze Body

  • Manufacturer: NIBCO Inc.
  • Brand Name: NIBCO®
  • Part#: 257692
  • MPN: NL9300A
  • UPC: 039923637444
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The NIBCO® bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 years 125% limited warranty.

NIBCO® Swing Check Valve, Y-Pattern, Series: T473B, 1 in Nominal, NPT, 600 psi, 300 lb, Low Lead Compliance: No, 3-3/4 in Inlet to Outlet Length, 2.44 in Top to Inlet Center, Bronze Body, Bronze Trim, PTFE, Domestic

Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      NPT
Inlet to Outlet Length      :      3-3/4 in
Low Lead Compliance      :      No
Nominal Size      :      1 in
Pressure Class      :      300 lb
Pressure Rating      :      600 psi
Series      :      T473B
Softgoods Material      :      PTFE
Top to Inlet Center      :      2.44 in
Trim Material      :      Bronze
Type      :      Y-Pattern
  • 300 psi/20.7 bar saturated steam to 421 deg F/216 deg C
  • 600 psi/41.4 bar non-shock cold working pressure
  • Renewable bronze discs
  • Regrindable seat
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NL92004_Specification_Sheet.pdf
  • pdfWarranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NIBCO_NL840XD_Warranty.pdf
