NIBCO® NL8300D 143802
  1. pin-int

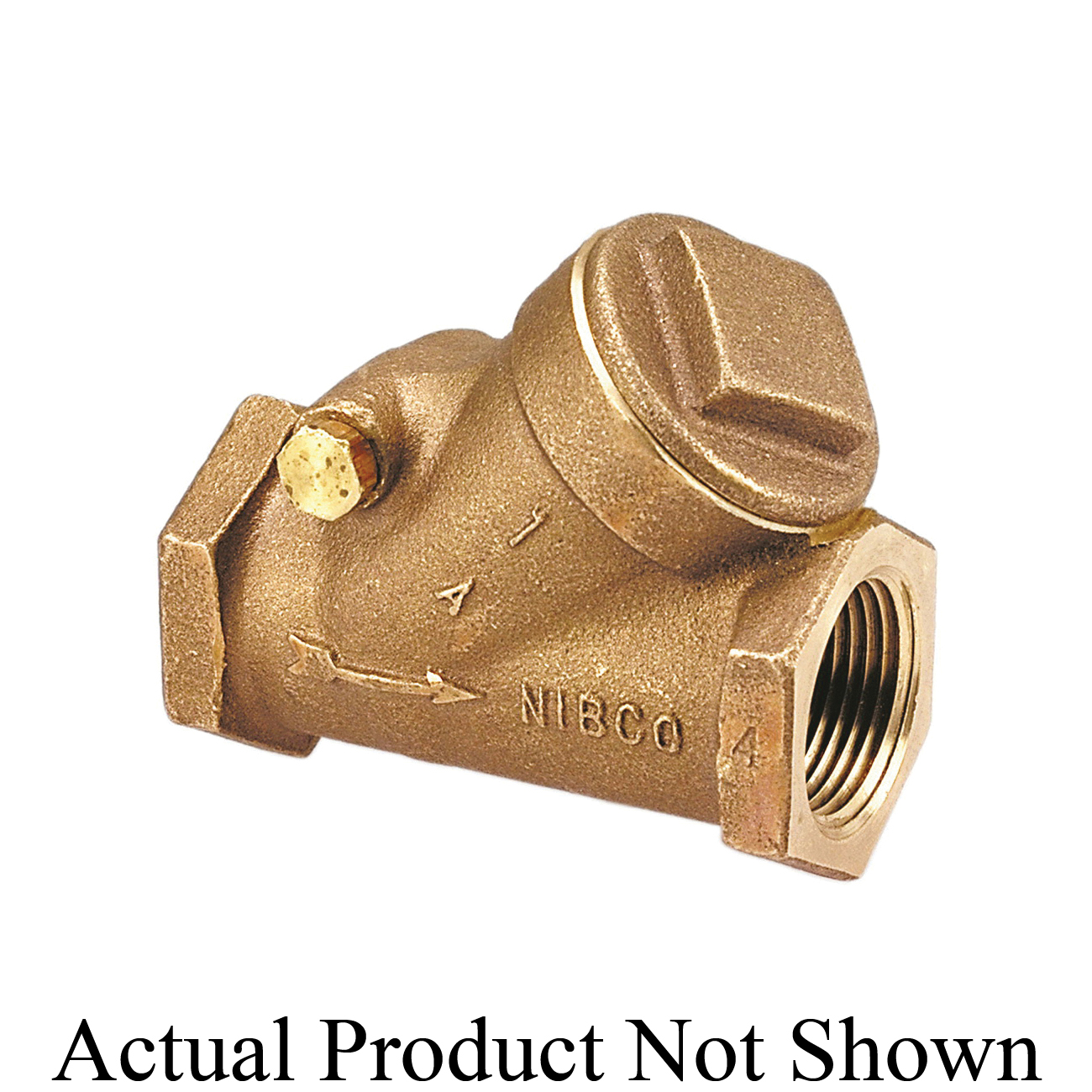

Y-Pattern Swing Check Valve, 2 in Nominal, Threaded End Style, 200 lb, Bronze Body

Y-Pattern Swing Check Valve, 2 in Nominal, Threaded End Style, 200 lb, Bronze Body

  • Manufacturer: NIBCO Inc.
  • Brand Name: NIBCO®
  • Part#: 143802
  • MPN: NL8300D
  • UPC: 039923637147
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

The NIBCO® bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO® technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 years 125% limited warranty.

NIBCO® Swing Check Valve, Y-Pattern, Series: T-453-B, 2 in Nominal, Threaded, 400 psi, 200 lb, Low Lead Compliance: No, Media: Steam, 5.81 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, Bronze Body, Bronze Trim, Domestic

Body Material      :      Bronze
Domestic/Import      :      Domestic
End Style      :      Thread
Inlet to Outlet Length      :      5.81 in
Low Lead Compliance      :      No
Media      :      Steam
Nominal Size      :      2 in
Pressure Class      :      200 lb
Pressure Rating      :      400 psi
Series      :      T-453-B
Top to Inlet Center      :      4-1/2 in
Trim Material      :      Bronze
Type      :      Y-Pattern
  • 200 psi/13.8 bar saturated steam to 391 deg F/201 deg C
  • 400 psi/27.6 bar non-shock cold working pressure
  • Renewable bronze discs
  • Regrindable seat
